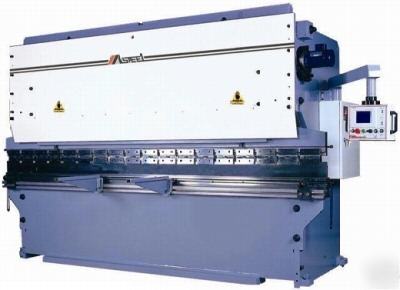

Y1 - Y2 and X Axis and Manual R Axis http:// /brochure/Brochure-S.pdf Factory Training In Vancouver BC Canada or At Your Shop This Machine can take American Or European Tooling This a Y1 - Y2 Machine so there is no need for the Old Torsion Bar As you can see from the video the machines are very quiet and accurate This is the standard HARDENED Tooling That comes with the machine. Top Gooseneck Punch and 8 way Bottom Die http:// /products/tooling/MD-4W4-0.jpg Most Brakes that come with tooling are for traing only. QUALITY & VALUE STANDARD EQUIPMENT: One axis Siemens CNC control: X – axis One axis manual adjustment: R – axis Precision-made backgauge fingers can be easily & accurately positioned along gauge bar Compact SIEMENS control system provides hydraulic, electrical and CNC control in one for best reliable performance. Push button rapid and fine adjustments on backgauge and bending position. Fully equipped with Masteel tooling and clamping system. Special punch clamp design for both America and European punch with no need of any ram adaptor Floating-adjustable die clamping system for various die application Hardened and precision ground tool steel gooseneck punch: 53-58RC;100Ton/M(33Ton/Ft) capacity Hardened and precision ground Masteel 10 openings, 4-way die: HB190-260. Masteel Crown Device for easy-adjusting tooling and machine wear intolerances with no cost 12 ¾ " throat depth with swing up clearance allows full length bend over bed up to 1' deep Front support arm with disappearing stops Standard SIEMENS two-axis CNC controller North-American made hydraulic & electrical system North-American standard hydraulic fittings and hoses MASTEEL Optional TP700 Control INCLUDED - 10-step bend on each job memory The standard two axis-X & Y CNC control Standard CNC control features as listed Optional R axis backgauge control One axis manual adjustment: R axis. Precision-made backgauge fingers can be easily & accurately positioned along backgauge bar. BUILDS QUALITY, MORE CAPABILITY AND AFFORDABILITY CNC bending angle control - Only inputs of bending angle, material thickness & die opening Two-way bending calibration controls -allow inexperienced operator to achieve desired angles with no time consuming multiple test bends. And save on costly skill labor and test bend material. Tool memory for quick recall of tool setup Job memory for quick set up of repeat forming work Adjustable ram deflection control to ensure even forming angle across full length Programmable ram delay control at bending position SIEMENS Compact Control System Siemens compact control system integrates CNC position control, hydraulics and electric control in one. Simple and less control components ensure years quality performance of Masteel Shears. Simple hydraulic system for reliable performance Quality America-made components: Valves, pump, hoses and fittings Masteel special punch holders accept both American and European punch with no need of any ram adaptor. Fully equipped with Masteel tooling and clamping system Special punch clamp design for both America and European punch with no need of any ram adaptor Floating-adjustable die clamping system for various die application Hardened and precision ground tool steel gooseneck punch: 53-58RC;100Ton/M (33Ton/Ft) capacity Hardened and precision ground Masteel 10 openings, 4-way die: HB190-260 Easy-adjusting tooling and machine wear intolerances with no extra cost Prevent ram from damage and worn-out 12-3/4" throat depth with swing up clearance allows full length bend over bed up to 1' deep. Front support arm with disappearing stops (this posting is the responsibility of the poster) |
