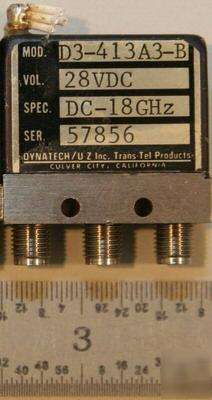

Dynatech/U-Z SPDT (single-pole, double-throw) SMA Switch Model D3-413A3-B Removed From Equipment - Untested Dynatech/U-Z D3-413A3-B Specifications: * Frequency Range: DC to 18.0 GHz * Insertion Loss (Max), DC-3 GHz: 0.2 dB * Insertion Loss (Max), 3-8 GHz: 0.3 dB * Insertion Loss (Max), 8-12.4 GHz: 0.4 dB * Insertion Loss (Max), 12.4-18 GHz: 0.5 dB * Isolation (Min), DC-3 GHz: 80 dB * Isolation (Min), 3-8 GHz: 70 dB * Isolation (Min), 8-12.4 GHz: 60 dB * Isolation (Min), 12.4-18 GHz: 60 dB * Switching Time: 15 mS Maximum * Actuating Voltage: 24-30 Vdc (28 Vdc nominal) * Actuating Current: 140 mA Maximum at 28 Vdc and 72º * Combining 'Small' items with other purchases is at the same rate of $1.50 for each additional 'Small' item. (this posting is the responsibility of the poster) |
