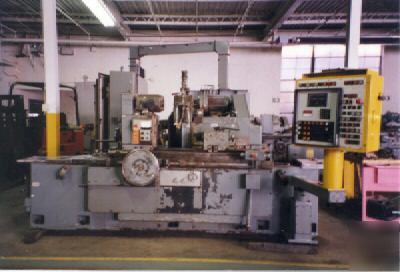

10" x 36" CINCINNATI-MILACRON #430ECIII 30-DEGREE ANGULAR PLUNGE GRINDER New 1980, Serial No 35432D379-0006, Model 430ECIII 3 HP VS Headstock Drive Combination Live/Dead Center Swing Over Table, Maximum................ 10.9375" Grinding Diameter, Maximum............... 10" Distance Between Centers, Nominal........ 36" Work Length Capacity, Maximum............ 40" Grinding Wheel Diameter, Standard........ 36" Grinding Wheel Width, Standard........... 6" Grinding Wheel Hole Diameter............. 12" Table Swivel Taper....................... 3.79" TPF Table Swivel Angle, Clockwise............ 9-DEGREES Table Swivel Angle, Counterclockwise..... 3-DEGREES Grinding Wheel Speed..................... 830 RPM Headstock Speeds, Range.................. 34 to 245 RPM Infeed Rapid Approach, Side Movement..... 4" Infeed Stock Removal Amounts, Range...... 0 to 10" Grinding Wheelhead Spindle Motor......... 25 HP Electrical System........................ 220-440/3/60 Weight, Approximately.................... 21900 LBS CONDITION: Appears to be in Very Good Condition. PRICE: F.O.B. OUR WAREHOUSE............. $5,000.00 All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
BFowler@dfwind.com (Bruce Fowler) for more information. All emails will be forwarded to the poster's actual email address.
