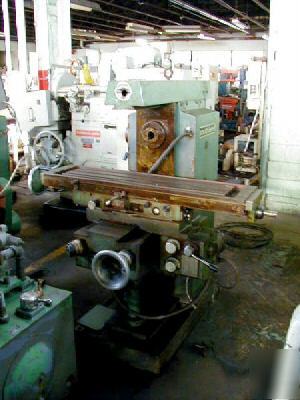

#1000 SOUTH-BEND "STURDIMILL" UNIVERSAL Serial No 0140148, Model 1000, Series "STURDIMILL" Universal Swiveling Table (45-Degree +/-) Table Dimensions (Overall), W x L....... 10.5" x 45" Table Longitudinal Travel (X-Axis)...... 28" Saddle In-Out Cross Travel (Z-Axis)..... 11" Knee Vertical Travel (Y-Axis)........... 17" Spindle-Center to Table-Top, Maximum.... 17" Spindle Taper........................... #40 NSTD (12) Spindle Speeds, Range.............. 35 to 1200 RPM (9) Longitudinal Feeds, Range........... 0.9 to 19 IPM Power Rapid Traverse, Longitudinal...... 72 IPM Spindle Motor, Horsepower............... 4 HP Feed Motor, Horsepower.................. 3/4 HP Weight, Approximately................... 2850 LBS PRICE: F.O.B. OUR WAREHOUSE............ $750.00 All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
JNolan@dfwind.com (Jody Nolan) for more information. All emails will be forwarded to the poster's actual email address.
