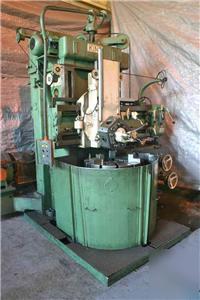

30" KING VERTICAL TURRET LATHE 1958 30 HP SERIAL .................................. 2983 MODEL ................................... 30 DIAMETER OF 3-JAW TABLE ................. 30" MAXIMUM SWING ........................... 34" MAXIMUM HEIGHT UNDER RAIL ............... 25" TABLE SPEEDS ............................ (16) 10 TO 300 RPM FEEDS ................................... (24) .0025 TO .500 IPM POWER RAIL ELEVATION .................... YES TURRET HEAD ON RAIL AND SIDE HEAD ....... YES MAXIMUM UNDER TURRET FACE TOOL .......... 26-1/2" TURRET HEAD SWIVEL ...................... 30 DEGREES LEFT OR RIGHT RAPID TRAVERSE .......................... 10 FPM 2 AXIS HEIDEHAIN DIGITAL READOUT ........ YES PENDANT CONTROL ......................... YES MOTOR ................................... 30 HORSEPOWER (this posting is the responsibility of the poster) |
L-Tran@dfwind.com (Lina Tran) for more information. All emails will be forwarded to the poster's actual email address.
