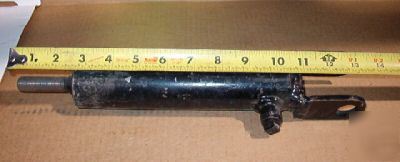

Cylinder, Hydraulic 1 1/2" x 5" 2500 psi Single Acting Hydraulic cylinder, single Acting, welded construction, 1.5 inch bore, 5 inch stroke, 1 inch rod diameter, 0.25 NPT port(s), Standard Clevis Base end with 1.782 inch inside width and 0.8 inch pin (NOT INCLUDED), Threaded rod end with 0.625-18 UNF, pressure rating of 2,500 psi, closed length of 13.75 inches, and extended length of 21.375 inches. 20927 (Single Acting Welded Cylinder) Standard Clevis, 1.782 inch inside width, 0.8 inch pin (not included) (this posting is the responsibility of the poster) |
