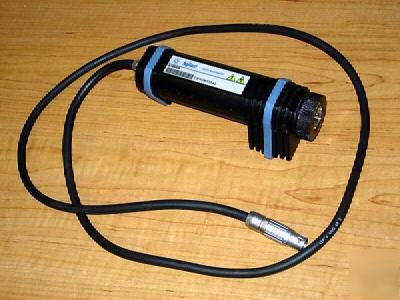

HP Agilent 81625B High Power InGaAs Optical Head, 5mm The Agilent optical power heads are specially designed for low PDL, low spectral ripple and high return loss and are used for optical component test. The heads come with a magnetic D-shape adapter and provide a safe stand. The optical heads have to be operated with the single (Agilent 81618A) or dual (Agilent 81619A) interface modules. Key performance specifications * High input power levels up to +40dBm with Integrating sphere * ±1.5% uncertainty with special calibration * ±0.8% uncertainty with PTB calibration * Low PDL uncertainty ±0.002dB * Low spectral ripple uncertainty: ±0.002dB Agilent 81625B Optical Power Head w/81000FA * Agilent 81625B + 81000FA x 1 More questions, please email us * 10 day DOA Guarantee by BoteQ.com * Local pick up is not offered. (this posting is the responsibility of the poster) |
Tiamcintosh@dfwind.com (Tia Mcintosh) for more information. All emails will be forwarded to the poster's actual email address.
