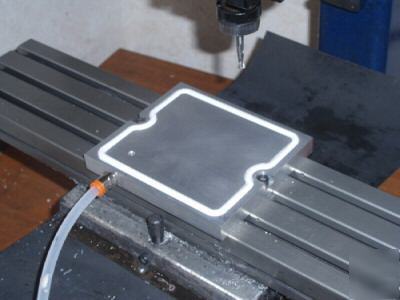

This chuck does not require a vacuum pump, it generates a vacuum with compressed air. Vacuum chuck holds parts with suction force of over 200 pounds. Includes valve system and reservoir tank which can be used to conserve compressed air once vacuum is achieved. CNC Milling, Engraving, holding, surface grinding, plotting or cutting. Below is a list of materials that can be clamped very easily and very quickly: Aluminum, Mahcinable Wax, Copper, Brass, Gold, Silver, Teflon, Delrin, POM, PVC, Plexiglas, Wood, LEXAN, and Acrylics. -Reducing setup time by up to 70% -An alternative to magnetic tables -Solid hold down for thin and solid parts -Setup for non-magnetic material All allowing the Vacuum Chuck to increase the efficiency for sign makers, engravers, carpenters, goldsmiths, RC-Modelers, tool and die makers and others. Air Consumption @ Operating Pressure: 0.8 cfm -4"X4.5"X.5 Vacuum chuck (made 6061 aluminum alloy) -2x Blank machinable pallet for back to back machining (made from 6061 aluminum alloy) - 1 year Limited replacement warranty (Vacuum Chuck) (this posting is the responsibility of the poster) |
K.gibson@dfwind.com (Kellie Gibson) for more information. All emails will be forwarded to the poster's actual email address.
