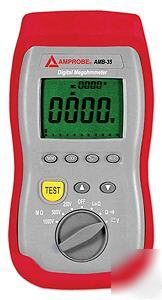

We are wholesaler and Distributor of all Electrical supplies brand name. Email: LTate@dfwind.com If you need any assistants please call us. * Tests insulation of wires, cables, transformers and electrical motors * Selectable test voltages 250V, 500V and 1000V * Programmable timer to perform the Dielectric Absorption Ratio Test * Sensitive Ohmmeter for checking resistance of motor windings * Fast and easy to use, rugged durable design * Internal Memory (stores 9 readings) Insulation resistance with 250 VDC test voltage: 0 - 5.000 /50.00 / 500.0/ 1000 MΩ Accuracy: ± 3% Rdg ± 5 LSD for < 1GΩ ± 5% Rdg ± 5 LSD for > 1GΩ Insulation resistance with 500 VDC test voltage: 0 - 8.000 /80.00 / 800.0/ 2000 MΩ Accuracy: ± 3% Rdg ± 5 LSD for < 1GΩ ± 5% Rdg ± 5 LSD for > 1GΩ Insulation resistance with 1000 VDC test voltage: 0 - 4.000 /40.00 / 400.0/ 4000 MΩ Accuracy: ± 3% Rdg ± 5 LSD for < 1GΩ ± 5% Rdg ± 5 LSD for > 1GΩ (this posting is the responsibility of the poster) |
