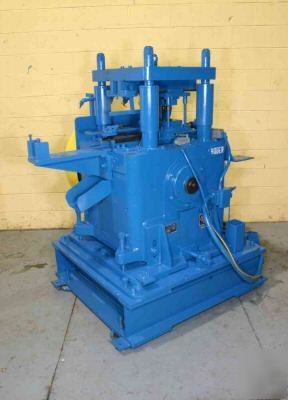

Photo Sharing and Video Hosting at Photobucket 40 TON YODER 4-POST CUTOFF PRESS SERIAL .................................. Y5124-167 MODEL ................................... P-40 CUTTING CAPACITY (MILD STEEL) ........... 1.200 SQ. IN. DISTANCE BETWEEN POSTS .................. 17-1/2" MAXIMUM STOCK SPEED ..................... 150 FPM MAXIMUM CUTS PER MINUTE ................. 50 MINIMUM LENGTH OF CUT ................... 36" MAXIMUM TUBE O.D. X GAUGE ............... 2" X .083" STROKE .................................. 4" SHUT HEIGHT (SDAU) ...................... 9-1/2" ADJUSTMENT .............................. 3-1/2" LATERAL ADJUSTMENT ON SUB-BASE .......... 3" VERTICAL ADJUSTMENT ON SUB-BASE ......... 3-1/2" UPPER DIE RAILS ......................... 1-3/4"W X 25-1/2"L X 3-1/4"H LOWER DIE RAILS ......................... 1-3/4"W X 31"L X 2-1/4"H CALL US AT 800/MACHINE (800/622-4463) TO SPEAK TO A SALESMAN. WE ARE HAPPY TO HELP!! 1-800/MACHINE (800/622-4463) Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery Yoder Machinery (this posting is the responsibility of the poster) |
karlaford@dfwind.com (Karla Ford) for more information. All emails will be forwarded to the poster's actual email address.
