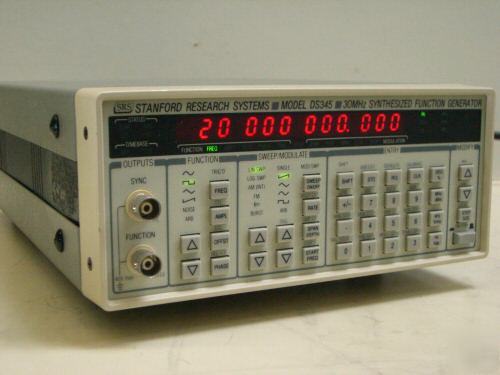

Stanford Research DS345 Synthesized Function Generator * Description: The Stanford Research DS345 Function Generator is a full-featured, 30 MHz instrument that uses an innovative Direct Digital Synthesis (DDS) architecture. It generates many standard waveforms with excellent frequency resolution (1 µHz), including: sine waves and square waves at frequencies up to 30.2 MHz, and triangle and ramp waveforms up to 100 kHz. In addition to the standard waveforms, the unit also provides a wideband (10 MHz) white noise source and has versatile modulation capabilities including AM, FM, Burst, PM and frequency sweeps. It also generates arbitrary waveforms with a fast 40 Msample/s update rate and 12-bit vertical resolution. A 10 MHz rear-panel input allows the DS345 to be synchronized to an external timebase. A 10 MHz rear-panel output allows multiple DS345's to be phase locked. Other features and specifications include: * 1 µHz to 30.2 MHz frequency range * 1 µHz frequency resolution * Sine, square, ramp, triangle and noise * Phase continuous frequency sweeps * AM, FM, burst and phase modulation * 16,300 point arbitrary waveforms * More specs can be found at: http:// /products/DS345.htm * Cosmetic Condition: Excellent * Working Condition: Presumed Good but Untested * Other Comments / Notes: None * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (this posting is the responsibility of the poster) |
kurt.bishop@dfwind.com (Kurt Bishop) for more information. All emails will be forwarded to the poster's actual email address.
