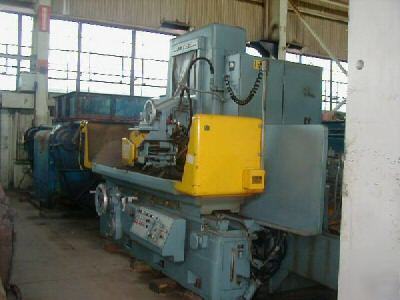

16" x 48" MATTISON "DIE-BLOCK" HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER New 1986, Serial No 24351, Series "DIE-BLOCK" 16" x 48" Magnalock Electro-Magnetic Chuck w/750 Watt Variable Neutrofier Travatrol Electronic Wheel Slide Controls Table Working Surface, W x L........... 16" x 48" Grinding Width Capacity, Maximum....... 16" Grinding Length Capacity, Maximum...... 48" Height Under 20" Grinding Wheel........ 24" Grinding Wheel Diameter, Standard...... 20" Grinding Wheel Width, Standard......... 4" Table Longitudinal Feeds, Range........ 0 to 125 FPM Spindle Incremetal Feeds, Range........ .0002 to .004 IPR Grinding Wheel Spindle Motor........... 20 HP/1200 RPM Hydraulic Motor Horsepower............. 10 HP Electrical System...................... 460/3/60 Overall Dimensions, L x D.............. 10'8" x 6'8" Overall Height......................... 9'2" Weight, Approximately.................. 21000 LBS NOTE: This Machine Appears To Be In Very Good Condition As Taken From Service In A Tool PRICE: F.O.B. OUR WAREHOUSE........... $29,500.00 All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
