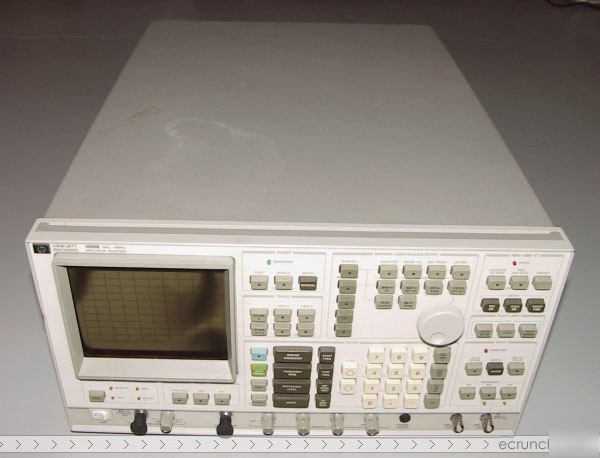

Information - Questions? Call (***)-253-6114 Ask for Chip or Trip The HP 3585B spectrum analyzer delivers high performance where it counts - at baseband frequencies. With very high accuracy, resolution, and dynamic range, the HP 3585B is the best solution for signal analysis at the critical frequencies comprising voice, picture, or digital information. In today's high-speed, high density information processing systems, maintaining the integrity of data signals requires more measurement performance than ever before. The HP 3585B provides 80-100 dB of spurious-free dynamic range, a sharp 3 Hz resolution bandwidth, and a 20 Hz-40.1 MHz frequency range to easily cover most information bandwidths. Fully synthesized tuning (including sweeps) and typical amplitude accuracy to +/- 0.25 dB ensure complete measurement confidence. Well-designed resolution bandwidth filters and a phase-continuous, synthesized local oscillator team up with exceptional dynamic range to give the HP 3585B very fast measurement speeds. A 40 MHz sweep using the 30 kHz resolution bandwidth takes only 200 milliseconds, fast enough for high-resolution spectrum surveillance. A 1 MHz seep using a 1 kHz bandwidth takes only 2 seconds, yet yields an average noise floor of -85 dBc. The standard 50 Ohm tracking generator covers the full 40 MHz frequency range of the Hp 3585B to provide easy scalar (amplitude-only) network analysis. The signal is fully synthesized in CW measurements and sweeps, and level is adjustable from 0 dBm to -11 dBm from the front panel. 50, 75, and 1 MOhm input impedances are all standard and are electronically selectable to match your system. The 50O and 1 MO inputs and provided probe power offer compatibility with a variety of passive and active probes. With input autoranging, the HP 3585B automatically chooses the optimum input range for maximum dynamic range and lowest distortion. This eliminates the need to manually adjust attenuation and IF gain. This unit has the following specifications: * Frequency Range: 20 Hz to 40.1 MHz * Resolution Bandwith: 3 Hz to 30 KHz * Dynamic Range: -100 dB to +10 dB * Tracking Generator: Built-In This item is in excellent condition, working perfectly, and comes with a 14 Day Guarantee Against DOA. It has a slight dust shadow, but it does not affect usability. Our 14 Day Guarantee Against DOA (Dead On Arrival) does not guarantee compatibility. Cashier's Check, Company Check, Money Order, and Personal Check Bank Wire - Contact for Information Bank Wire - Contact for Information (this posting is the responsibility of the poster) |
