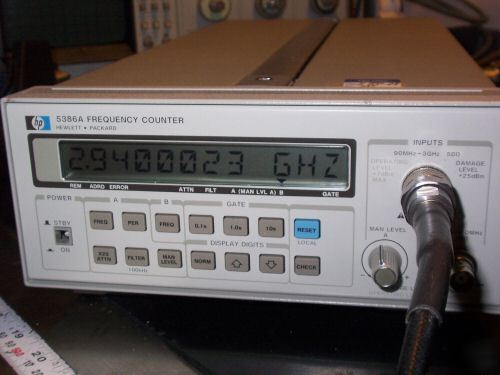

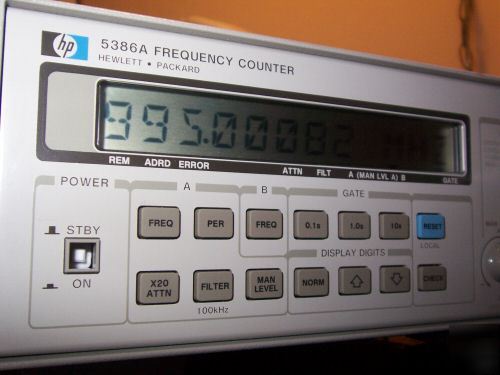

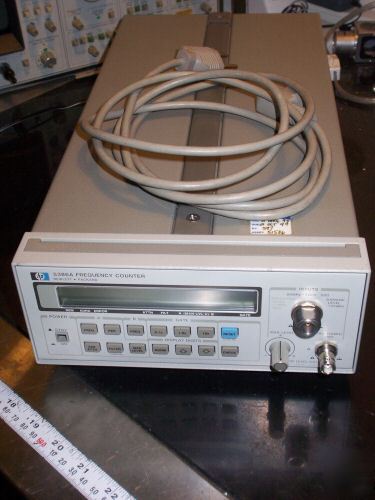

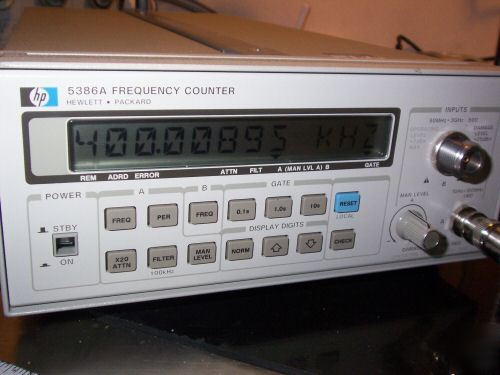

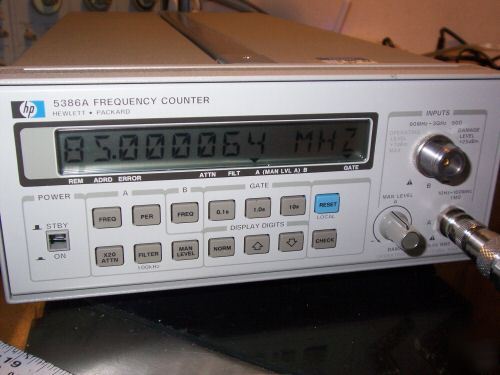

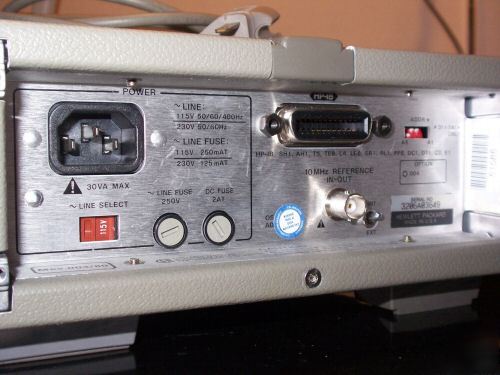

HP 5386A 10 Hz to 3 GHz Frequency Counter with HP-IB option The Agilent HP 5386A incorporates a 12-character display, accessible remotely via HP-IB. The liquid crystal display (LCD) can be read in direct sunlight, and has large characters that can be seen from the end of a bench or mounted high in a test rack. The 5386A can be easily carried to remote locations for service and calibration applications. * Measurements are displayed in meaningful units * Features reduced switching requirements * Measurements to 3 GHz with -23.5 dBm sensitivity, a 30.5 dB dynamic range, and a damage level of +25 dBm * Half-rack width saves rack space * Optional high-stability ovenized oscillator offers greater accuracy * Controlled via HP-IB, the display can be used for messages and operator prompts, or even blanked for security. * Measurements are displayed in your choice of units. The number of digits displayed can be varied from the front panel or HP-IB. * Frequency measurements from 10 Hz to 3 GHz are made with two input ports, instead of three, for reduced switching. Good luck and thank you for looking! * California purchases are subject to 8% California sales tax (this posting is the responsibility of the poster) |
