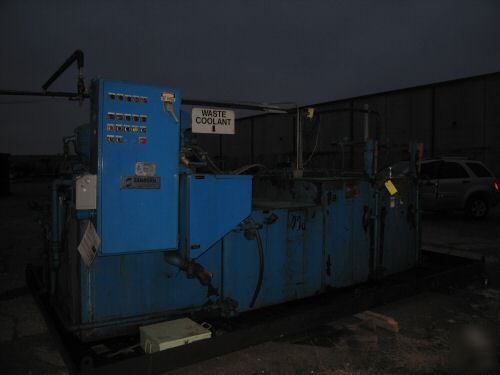

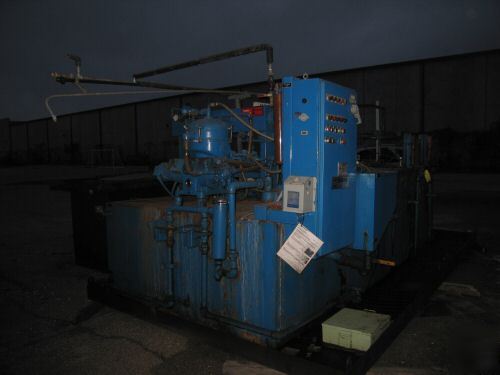

Sanborn Machine Coolant Recovery System (In working condition) * Model: 2-1S500-2-C (500 Gallon Version) * System Designation: Coolants * Maximum Process Rate: 120 gph * Overall Dimensions: 8.5'L X 7.5'W X 7'0H * Power Requirements: 40 amp, 480 volt, 3 ph, 60hz * Pre-Strainer: Basket-type, 20 mesh * Pre-Separator: Hydrocyclone 1" - Pressure 35psig input - 17psig Output - Process rate 10GPM maximum * Feed Pump: Progressive Cavity Type - Ramoy Model 35651 - Motor: 1HP, 460vac, 3ph, 60hz - C Flange TEFC * Centrifuge: Model SJ700 - Inner Rising Channels - Max Process Rate: 120 gph - motor: 2HP, 460vac, 3ph, 60hz - Special Flange - Maximum solids content in feed 0.1% by volume. * Controls: Allen Bradley SLC-100 Programmable Controller * Tank Size: 500 Gallon System - qty: (1)500 Gallon Capacity Dirty Coolant Tank and qty: (1) 500 Gallon Capacity Clean Coolant Tank Included * Pasteurizer: Electric 18kw, 460vac, 3ph, 60hz The Sanborn Coolant Recovery System processes water based coolants. The coolants are used to cool and lubricate cutting tools in the machine tool industry, these fluids become contaminated with metal particulate, tramp oils, and various other contaminents. This contamination causes the fluid to become categorized as spent and ready for disposal. The Coolant Recovery System effectively removes these contaminates allowing for continued reuse and eliminates the need to to dump expensive coolants. The Recovery Sytem is designed to operate as a batch-type system for the coolant. (this posting is the responsibility of the poster) |
