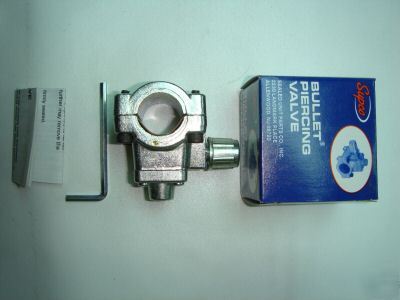

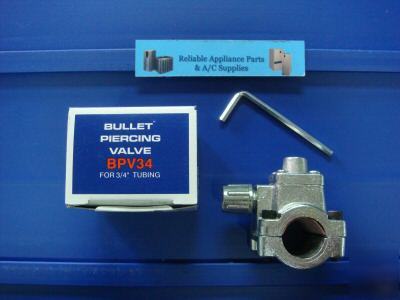

BULLET PIERCING VALVE BPV34 FOR 3/4" TUBING . Install on the high side as a "Permanent" valve on the job ® Piercing Valve will not leak . Install on round suction lines or uneven tubing . Hex key wrench included . No additional tools required . Nonpositional mounting . No adapter valve required . Precision piercing needle is engineered for concentricity and hard ness to insure perfect seating every time . Patented valve gasket application provides 50 times more sealing area than competitive "O" ring types . A sealing force of over 180 inch lbs., torque tested with 500 lbs., . Requires only a 2" clearance area for installation and operation . Provided with a corrosion resistant plated and lacquered finish PART NO. O.D. TUBING SIZE PACKAGING BPV31 1/4", 5/16", 3/8" 12/Box Piercing Valve. utilizes the same type of gasket found under the head plate of most air conditioning compressors. When installed, the gasket actually compresses the copper tubing .020" creating a "Permanent", leakproof seal that will withstand any pressure and temperature for the life of the unit. NOTE: BPV31 and BPV21 are furnished with adapter sleeves for indicated multiple use applications. ® Piercing Valves are available in an attractive countertop display box containing 48 valves. Specify BPV31D when ordering. (this posting is the responsibility of the poster) |
