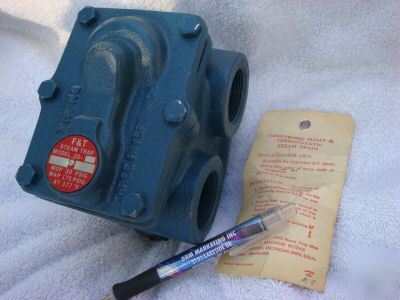

1" Watson McDaniel Steam Trap Float & Thermostatic Steam Trap. This item is new and unused. 125 psi Size: 1" (stock picture not actual trap click here for manufactuers website and complete technical specifications) http:// /wmpdf/SteamTraps-ftseries.pdf The FT Series float and thermostatic steam traps are used for HVAC and light industrial process applications, and can be applied to unit heaters, water heaters, pressing machines, heat exchangers, and coils. These traps have excellent air removal capability making them an excellent choice for HVAC and process applications requiring quick start-up. Float and thermostatic steam traps have a float and thermostatic element that work together to remove both condensate and air from the steam system. The float, which is attached to a valve, opens when condensate enters the trap. Air is discharged through the thermostatic air vent to the outlet side of the trap. The thermostatic air vent closes when steam enters the trap. H-pattern design allows piping from either side of the steam trap (there are two inlet ports at top and two outlet capability allowing air to be discharged rapidly and steam to enter the system quickly during start up Welded stainless steel thermostatic air vent resists shock In-line repairable (all internals are attached to cover) (this posting is the responsibility of the poster) |
