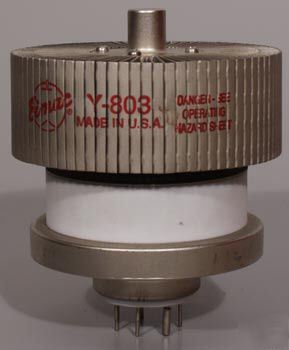

Eimac Y-803 Tube equivalent to an 8295A Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are for an 8295A and may vary slightly due to upgrades, options, or revisions this unit may or may not have. The Eimac Y-803 is a variation of an 8295A. It has a dense cathode for high voltage (HV) processes. It was created for Harris. Link to datasheet: http://catalog.rell.com/rellecom/Images/Objects/2400/2371.PDF The EIMAC 8295A is a ceramic/metal, forced-air cooled, radial beam pentode with a rated maximum plate dissipation of 1000 watts. It is capable of high power gain and excellent efficiency at relatively low plate voltage. The 8295A is a direct replacement for the 8295. This external-anode tube is especially suited for Class AB1 linear rf amplifier service, but will also provide excellent performance in Class AB2, Class B, and Class C service. Anode Current (A) Maximum: 1.0 Associated Socket: SK184A/PL184 Typical Anode Current (A): 0.820 Typical Anode Dissipation (kW): 1.000 Typical Anode Voltage (V): 3,000 Plate Dissipation (Max.): 1000 watts Screen Dissipation (Max.): 30 watts Grid Dissipation (Max.): 5 watts Maximum Length: 5.05 in (128 mm) Maximum Diameter: 4.03 in (102 mm) Maximum Seal & Anode Core Temperature: 250 degrees C Cathode: Oxide-coated Unipotential Capacitances (Gnd. Cath. Connection): For More Pictures Please Click the Following: (this posting is the responsibility of the poster) |
