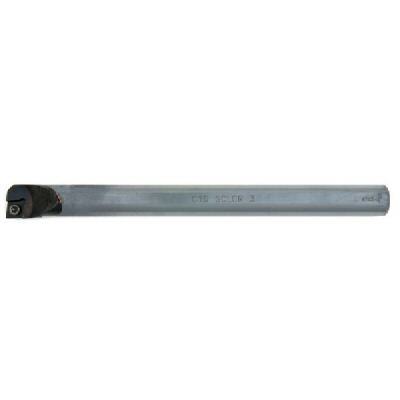

* Shank diameter is .625 , Bar length is 7.5 inches * Minimum bore diameter of .720 inches * Bars have a flat on the top and bottom for easy alignment * Extension ratios of over 10 to 1 are possible even in steel * Boring bar includes torx wrench and 2 insert screws (1 spare) * Uses series CCMT 32.5XXXX and CCMT 09T3XXXX insert * Also uses CCGT and CCET inserts, insert tolerance is the only difference * 5 deg lead angle allows you to profile up to a 90 deg shoulder * MariTool Part# is C10-SCLCR-3 Feel confident purchasing from a POWERSELLER Feel confident purchasing from a POWERSELLER. (this posting is the responsibility of the poster) |
