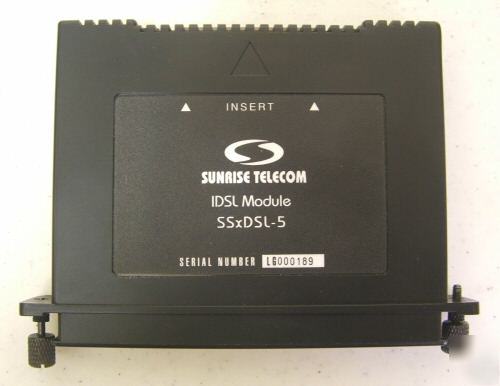

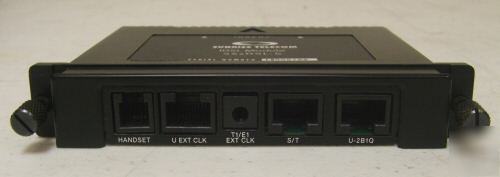

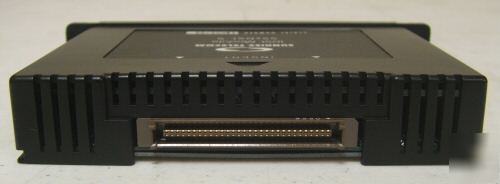

Sunrise Telecom IDSL Module SSxDSL-5 To Be Used With SunSet MTT & xDSL Test Sets Included Accessories Listed at the Bottom. Be sure to add us to your Favorites list! Warranty: 30 Day Exchange Warranty Transmit Clock Setting (LT modes only): * Internal, external U, external T1 or external E1 eoc commands on the U interface in LT modes Address: * 0 to 7 (NT1, U-Repeaters, or Global) * Loop 2B+D, Loop B1, Loop B2, Request Corrupted CRC, Notify Corrupted CRC, Return to Normal, Hold State * Individual bit manipulation * Sends 40 kHz tone at +13.6 dBm for line loss testing ISDN Testing (SWxDSL-5BRIE/BRIN) Allows IDSL Module to perform ISDN Basic Access call setup * AT&T 5ESS, Nortel DMS, National ISDN, ETSI * Speech, Data-56, Data-64, 3.1k audio * Speech, Data-56, Data-64, 3.1k audio, 7k audio * Automatic or Manual, loop or terminated Point-to-point or Point-to-Multipoint * Any combination of sent and received calls on B1 & B2 channels, speech or data • Auto SPID Detection: Supported with National ISDN-3 protocol only. Queries the switch to obtain correct SPID. • Guess SPID Detection (NA protocols only): Automatically test, based on phone number, to verify SPIDs on the line. – For NA protocols: Automatic scan of bearer services for service availability – For ETSI protocol: Automatic scan of bearer and teleservices for service availability including: Speech, Data-56, Data-64, 3.1k audio, 7k audio, video Tele3.1k, Tele64k, Fax G.2/3, Fax G.4, Mixmode, Processable Form, Videotex, OSI • Auto Supplementary Service Scan (ETSI protocol only):Automatic scan of supplementary services for service availability including: DDI, MSN, CLIP, CLIR, COLP, COLR, MCID, SUB, CFU, CFB, CFNR, CW, HOLD, CUG, AOC-S, AOC-D, AOC-E, TP, UUS • SELFBERT: Automatic setup of a Data-64 call from one B-channel to the other. Automatically answers the received call with a loopback & starts a 64k BERT. • DUALBERT: Automatic setup of 2 independent Data-64 calls, one on each B-channel & starts a 64k BERT on each data call. • BONDING CALL: Automatic setup of 2 Data-64 calls, one on each B-channel. Perform channel delay measurement and 128 kbps BERT after call connection. * Allows IDSL Module to perform X.25 calls over D-channel Supports CUG (Closed User Group), RPOA (Recognized Private Operating Agency), Reverse Charges, Call User Data * Automatic answer with selectable echo mode for looping received data packets to the transmit Protocol Analysis (SWxDSL-5BRIPA1) * D-channel message capturing and protocol analysis * Layer 2 and Layer 3 message decoding * Displays messages in HEX or text decoded format with detailed decoding of information element * Detailed trace printing in HEX and text decoded formats via serial interface to printer or PC * Capture and display filters for Layer 2 only, Layer 3 only IDSL U Interface LT-144k, LT-LOOP Modes • Verifies Layer 1 from LT to NT eoc maintenance commands to NT, U-repeater • BERT either B1, B2, D, B1+B2 or 2B+D channels • Tests to a loopback or to another test set • Ext. clock reference from U, T1 or E1 for transmit signal • LT-144k mode sends a test pattern and measures bit errors on the selected channel • LT-LOOP loops the 2B+D channels at 144 kbps and measures bit errors on the selected channel * Sunrise Telecom IDSL Module SSxDSL-5 (this posting is the responsibility of the poster) |
