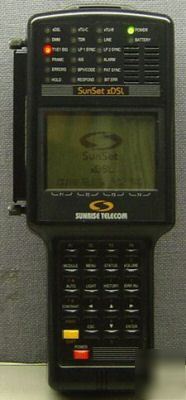

Sunrise Telecom SunSet xDSL Test Set with a SSxDSL-8 Dual T1 Module Comes with what you see in the pictures. If you don't see it you probably wont get it. Specifications listed may vary due to upgrades/options/revisions this unit may or may not have. The unit comes with an T1 Module in it and has Option AA0 and AD7. Unit powers up and passes all self tests. No way to test. AA0: Regular Set - Full Chassis Test Set AD7: TDR/LINE/DMM AG TDR J - Line + TDR Option DMM - The SunSet xDSL helps ensure timely delivery of Digital Subscriber Line service. The modular chassis supports a variety of plug-in modules that address a number of different transmission technologies, including ADSL, IDSL, SDSL, HDSL, Voice Frequency, and Datacom. Additionally, powerful Cable Maintenance Testing (CMT) features enable comprehensive cable quality measurements. Best of all, the SunSet xDSL can be tailored to suit your needs. * PSD Noise and Frequency Response * HSSI (High Speed Serial Interface) SunSet xDSL Chassis Configurations: The SunSet xDSL, in its 3 lb (1.36 Kg) platform, provides incredible versatility for a handheld test set. Plug-in modules allow you to customize the test set for your specific needs. The modular platform significantly extends the life of your test equipment investment; you simply modify your test set with a new plug-in module whenever new technologies evolve. * Synchronize and achieve "showtime" with DSLAM ATU-C * Verify service rate provisioning with acceptable noise margins * Determine what rates can be supported before installing equipment * Prequalify cable using G.DMT, ANSI, or G.lite compliant ADSL signal * Know what rates can be supported before installing equipment * Various ADSL systems are supported. Please inquire with your local sales representative for correct HW/SW selection. IDSL testing capable is not the limit of the IDSL Module, which also offers a broad range of crucial ISDN and X.25 over D-channel Basic Rate test capabilities making circuit testing more productive. * External clock for IDSL over DLC Testing * U interface M4 Channel Access * D-channel Packet SVC and PVC Tests Equipped with the most needed test capabilities the IDSL Module enables field technician to efficiently perform circuit turn-up and troubleshoot testing for IDSL and BRI ISDN circuits. * Use external clock inputs to facilitate IDSL over DLC system testing to ensure valid BERT measurement. * Test and monitor IDSL circuit status with the U interface eoc commands and M4 channel access capability provided by the IDSL Module. * Turn-up ISDN circuits by making test calls and using the automated test capability * Troubleshoot ISDN circuits by monitoring the D channel messages and call disconnect cause value. * Verify proper circuit functioning of X.25 over D channel by making test calls and sending data packets. The IDSL Module allows IDSL and ISDN BRI testing by providing both U and S/T test interfaces. IDSL testing on the S/T interface is also supported through the availability of the S/T interface and the associated NT and TE emulation modes. Considering also ISDN circuit turn-up and maintenance testing requirements, the ISDN BRI emulation modes provide Layer 2 and Layer 3 testing with the TE/NT1 and TE-S/T emulation respectively for the U and S/T interfaces. External Clock for IDSL Circuit over DLC Testing Transmission quality BERT performed on IDSL circuits carried over Digital Loop Carrier (DLC) systems mostly suffers from intermittent pattern sync loss owing to clock slip problem. The IDSL Module provides external reference clock inputs to enable the test set to synchronize to the network to eliminate clock slip between the source from the test set and the circuit under test ensuring valid BER test result. Perform loop BER test from the central office or co-locate site towards the span with the repeater or NT looped-up after sending eoc loopback command. Verify also if the NT is connected to the circuit by checking the response of the eoc command. Acts as loop box in NT mode responding to eoc loopback commands from the LT. U Interface M4 Channel Access The M4 channel provides useful information to the field technician about the circuit continuity through to DSLAM. The IDSL Module offers control and monitor of the M4 channel bit status. Telephone function for ISDN testing is supported through the use of microphone and loudspeaker on the SunSet xDSL unit. A handset interface is provided on the module for connection of an external handset to allow communication on two simultaneous calls. Supports most needed service types. Convenient B channel selection is provided for outgoing calls for test of individual B channel. Automatic last number recall and speed dial numbers are available for easy access to last called and commonly used test numbers. BER test analysis is in accordance with ITU-T Rec. G.821 to determine the performance of the end-to-end connection. BER test results can be stored in non-volatile memory. The ISDN automated tests are ideal for service provisioning to enable a quick verification of the services associated with and the performance of the line under test. Tests include Auto SPID for National ISDN, Guess SPID, Service Scan, Supplementary Service Scan, SELF-BERT, DUAL-BERT. The X.25 over D-channel test function supports testing for SVC and PVC service. Data transmission is verified by sending pre-defined data packets. On screen indication confirms successful packet transmission making packet test easy. * Synchronize with HTU-C line card * Install and verify SDSL service * Prequalify a line for SDSL service * Plug and play with far end HTU-R The HDSL Module offers a set of strong test features for 4-wire HDSL span installation and maintenance. It provides you with handy T1 testing capabilities through the HDSL interface and also the DS1 interface giving a total solution for testing on both the HDSL and DS1 interfaces all in one box. Extensive HDSL span loopback control capability combined with the user-friendly graphical result presentation makes testing more efficient and productive. The HDSL Module brings you the test solution for both 4-wire HDSL and DS1 span testing: * Pre-qualify cable pairs for HDSL modem installation to ensure required transmission performance can be achieved. * Verify proper functioning of the HDSL central office terminal and remote terminal by replacing the HDSL terminal with the HDSL Module. * Troubleshoot HDSL span by verifying span performance parameters against circuit turn-up record. * Test HDSL span by running BERT to local and remote terminals after loop-up. * Test T1 and fractional T1 circuits with the DS1 interface and BER test capability. * Verify T1 span performance by in-service monitoring the frame and code error of the signal in bridge or monitor mode. The HDSL Module provides comprehensive 4-wire HDSL span testing capabilities. HTU-C and HTU-R emulation modes are available for out-of-service span performance evaluation. The integrated T1 tester is available to facilitate the BER performance evaluation of HDSL span and also the performance of the far end terminal without the need of another T1 tester. Noise margin, pulse attenuation are important parameters for a HDSL span to determine the performance of the span during span turn-up and for maintenance troubleshooting. The HDSL Module displays on-screen with regular automatic updates these parameters for both of the two HDSL loops eliminating the need for a craft terminal. The need for T1 testing on DS1 interface is very common for both HDSL span and T1 span turn-up and troubleshooting. The HDSL Module provides a DS1 interface for such a test requirement. Framed, unframed, full rate and fractional T1 configurations are available to meet various test requirements. Loopback control function is required to enable single-ended BERT testing on the HDSL span. Powerful HDSL loopback features are available in the HDSL Module to enable remote loopback control in HTU-C mode or T1 test mode. The graphical user interface provides an easy-to-master loopback control function for HDSL span testing. The HDSL Module allows loopback control of the remote CSU and NIU to make single-ended BERT of the span convenient. Pre-existed loop detection is provided to provide a clear loopback status before and after the transmission of the loopback commands. Error performance analysis is in accordance with ITU-T Rec. G.821 to determine the transmission performance of circuit. Bit, frame and BPV error injections are available to verify circuit continuity and test device interface. G.SHDSL is an ITU standard that defines high speed, symmetrical DSL delivery over a single copper pair (2 wire operation) at rates between 192kbps and 2.312Mbps. * Verify service rate provisioning with acceptable noise margins * Determine what rates can be supported before installing equipment * Service verification to ISP * Link turn-up with CPE equipment * Verify service rate provisioning with acceptable noise margins * Prequalify a dry copper pair * Know what rates can be supported before installing equipment HDSL2 is an ANSI T1.418-2000 standard that defines high speed, symmetrical DSL delivery over a single copper pair (2 wire operation) at fixed T1 rates. * Verify service rate provisioning with acceptable noise margins * Service verification to ISP * Link turn-up with CPE equipment * Verify service rate provisioning with acceptable noise margins * Prequalify a dry copper pair * Know what rates can be supported before installing equipment The Dual T1 Module offers full T1 physical layer testing via a standard dual T1 interface. The user can install and maintain T1 networks by testing T1 transmission, signal levels, and alarm signals. Optional services include VF, datalink, and intelligent repeater control for more power and flexibility. * Comprehensive T1 Transmission Testing * Loopback Testing for T1 Circuits * Voice and Signaling Testing Comprehensive T1 Transmission Testing Complete transmission testing is the foundation of the SunSet xDSL Dual T1 Module. T1 and FT1 BERT testing includes all standard industry test patterns, including FOX, 55OCTET, and 55DALY. Results include bit errors, alarms, BPVs, CRCs, simplex current, frequency, and level. Auto configuration makes setup quick and easy. * Full duplex T1 testing: bi-directional monitoring and drop & insert testing * Complete stress patterns and measurements * Frequency graph illustrating clock slips and wander Loopback Testing for T1 Circuits A complete set of network loopback codes includes CSU and NIU. User-programmable codes provide extra flexibility. The Dual T1 Module also contains intelligent repeater control for Westell and Teltrend equipment, allowing T1 span troubleshooting. * Inband and datalink commands for CSU and NIU equipment * 10 user-programmable loopback codes The SunSet xDSL Dual T1 Module is the perfect tool for installing and maintaining voice trunks. By placing and receiving calls, the Dual T1 Module verifies service when installing new voice trunks or PBX equipment. Bi-directional monitoring and drop/insert testing troubleshoots signaling problems between the switch and the PBX. Features include: * E&M, Loop-start, Ground-start, FXO/FXS signaling * Noise measurements: signal to noise, C-notch, C-message, 3K-flat * Digits capture and analysis * Bi-directional signaling analysis Monitoring the ESF BPM-PRM data link is an excellent way to discover errors which are otherwise undetectable at the monitoring point. The user can also retrieve valuable performance reports from NIUs. The Dual T1 Module has the power and features to troubleshoot PRI problems, whether the cause be physical layer errors, timing, switch translations, or other protocol issues. In addition to bi-directional trace monitoring and decoding, the Dual T1 Module can place and receive both voice and data calls in a TE or NT configuration. * National ISDN, AT&T Custom, and Nortel DMS * 23B+D, 47B+D, or 46B+2D testing * BERT data calls: 56k, 64, Nx64k * Backup D-channel test for NFAS circuits * D-channel monitor with full decode * Trace filtering and storage The Dual T1 Module offers testing for all aspects of GR-303 systems: monitoring the TMC/CSC control channel, viewing robbed ABCD signaling and dialed digits, listening to voice channels, and thorough tests for the physical layer. The GR-303 option troubleshoots signaling problems between the switch and remote terminal: to determine call status, monitor for any dropped calls, detect any abnormal conditions, and identify when service was unavailable. The Datacom module expands the SunSet xDSL's applications to testing WAN/data services. DTE/DCE emulation extends end-to-end testing of data networks and can be used to install and verify CSUs, routers, and other WAN equipment at the CPE. B-directional monitoring provides a greater level of troubleshooting for data networks. * Bi-directional monitoring with Y-adapter * V.35, RS232, RS449, RS530, X.21 * Data rates from 50 bps to 2.048 Mbps * BERT testing with stress patterns * Control lead status for CTS, RTS, DSR, DTR * Loopback testing with RL & LL DTE emulation provides end to end testing for data networks. This can be done in either a point to point configuration or the set can loopback a DCE device (RL & LL) for one-sided testing. With Y-adapters the SunSet xDSL can monitor the data sent by the DTE and DCE devices. Users may view control lead status (CTS, RTS, DSR, DTR) from both sides, as well as view the actual data bits sent. Other valuable monitor measurements include data loss and received frequency. VF-TIMS module offers as an additional application to the SunSet xDSL product. The VF-TIMS module provides complete Voice Frequency testing in the analog voice range. It supports a range from 50Hz to 20,000Hz, and has tests for received level and frequency, noise, signal to noise, impulse noise, and call setup (DTMF, DP, or MF Dialing). * Transmission/Receive Frequencies and Level measurements * 3-Tone Slope and Frequency Sweep functions * Noise and Signal to Noise ratio Measurement * Call Placing for Analog circuit testing * Transmission /Receive Frequencies and Level measurement One basic application is to transmit a frequency over a pair of wires. Typically another test set is needed to measure the frequency at the far end of the cable. This function of transmitting frequencies includes a number of ways this can be done: * Fixed Mode: This is a single fixed frequency being sent at a fixed level. * 3-Tone Slope Mode: This mode sent frequency 404, 1004, and 2804 Hz at 5 seconds interval with a fixed level. * Sweep Mode: This sweeps a certain range of frequencies with a user configurable start and stop frequencies, a step, a dwell time, and a fixed level. * Quiet Mode: This places a quiet termination on the circuit. Another basic application is to receive a frequency and perform a level measurement. This strictly shows received frequency and level. Noise and Signal to Noise ratio Measurement, and Impulse Noise Measurement VF-TIMS module can perform Noise and Signal to Noise ratio measurement, and Impulse Noise measurement with different filters placed on receiver. These filters are C-message, 3kHz-Flat, and 15kHz-Flat. This test is typically done on one of the cable with a Transmit source on the other end of the pair, and this test can be done either 2-wire or 4-wire cable. Call Placing for Analog circuit testing: VF-TIMS module allows you to place a call on a 2 wire analog POTS circuit with selected dial mode (DTMF, DP, or MF dialing). This will be done connected to a switch in a central office where digits are sent and you can talk and listen with the test on line. Independent cable assessment features for installation, prequalification, and troubleshooting. * PSD Noise and Frequency Response * Background Noise: PSD and IEEE-743 Filters * Frequency Response/Insertion Loss * Signal-to-Background Noise The HSSI module provides High Speed Serial Interface (HSSI) testing for speeds up to 52 Mbps. * Loopback Testing: generate loopback commands (LA and LB) and auto-response to received loopback commands (LC). * Control DTE transmit control leads and monitor received DCE control leads. (this posting is the responsibility of the poster) |
