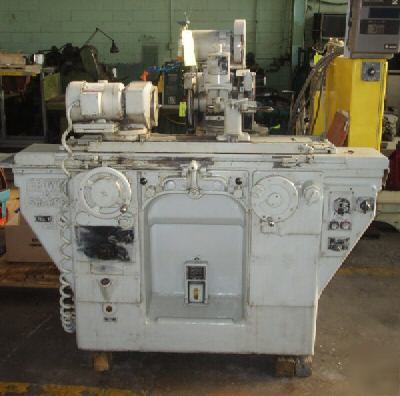

10" x 20" BROWN & SHARPE UNIVERSAL CYLINDRICAL GRINDER New 1960, Serial No 521-1-227, Model 1, Internal Attachment (Swing Down)With 2 Internal Workhead With Updated AC Variable Speed Drive Coolant System (Built-In) - Table Type Dresser Vinco Radius Dresser - 7.5" 4-Jaw Chuck Extra Wheel Mounts, Centers, Grinding Stones, etc. Swing Over Table, Maximum.............. 10" Grinding Diameter, Maximum............. 10" Distance Between Centers, Nominal...... 20" Distance Between Centers, Maximum...... 23.75" Grinding Wheel Diameter, Standard...... 10" Grinding Wheel Width, Standard......... 0.5" Grinding Wheel Hole Diameter........... 3" (3) Grinding Wheel Speeds, Range....... 2500 to 3600 RPM Workhead Spindle Speeds, Infinite Range 60 to 600 RPM Table Longitudinal Feeds, Infinite..... 3 to 150 IPM Wheelhead In-Feeds, Range.............. .0001 to .003 IPR Grinding Wheelhead Spindle Motor....... 1.5 HP/1730 RPM Workhead Motor, Horsepower............. 1/4 HP Electrical System...................... 220-440/3/60 Overall Dimensions, L x D.............. 7'4" x 6'5" Overall Height......................... 5'3" Weight, Approximately.................. 5700 LBS PRICE: F.O.B. OUR WAREHOUSE........... $4,950.00 All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
