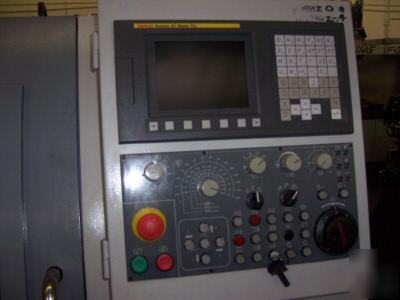

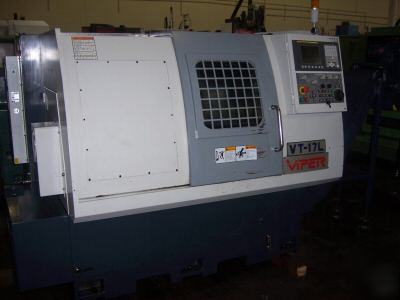

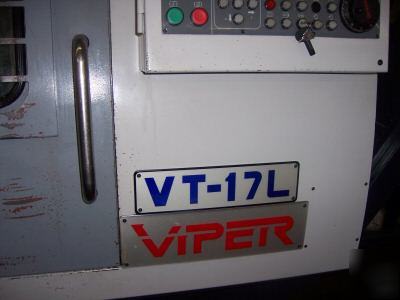

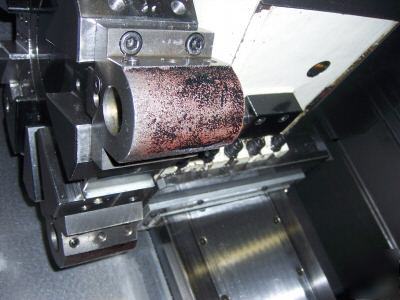

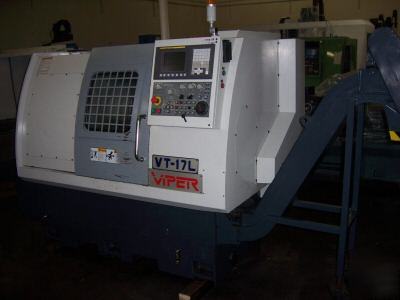

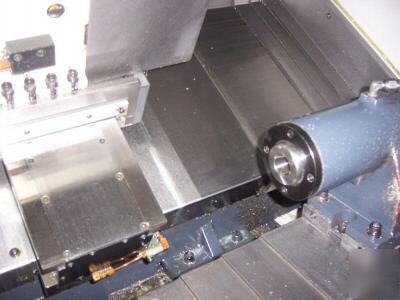

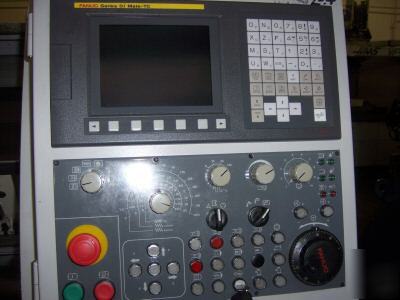

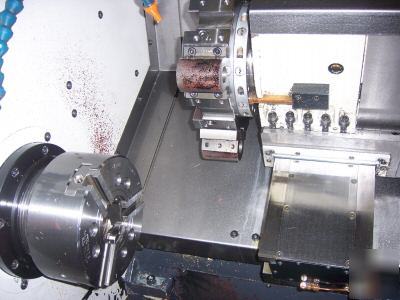

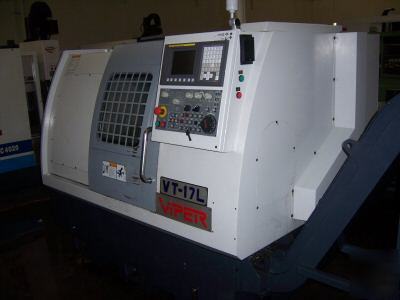

VIPER CNC VT-17L Available for Heavy Cutting The headstock has thermal deformation prevention design for higher accuracy. Located on the headstock, the 15 HP, 5,000 RPM, 98 ft-lbs spindle provides the cutting feedrate of 945 IPM. Made of SCM21 alloy steel, the spindle offers speed on surface finishing and metal removal. The P4 grade angular contact thrust spindle bearings from NSK, SKF or FAG help ensure precision turning during long-term operations. The large, rigid, precision ground turret is non-stop and bi-directional. It is designed with 10 stations that allow 3/4" shank height square tooling and Ø1" shank diameter for boring tool with minimal tool interference. The curvic coupling, hydraulic clamping and position encoding designs are to enhance reliability and cutting capability. For programming, Fanuc 0iT, 21iT and 18iT controls are utilized on spindle control and processor for high-speed computation. For more information contact: Jim 714-6121480 (this posting is the responsibility of the poster) |
n_stewart@dfwind.com (Nora Stewart) for more information. All emails will be forwarded to the poster's actual email address.
