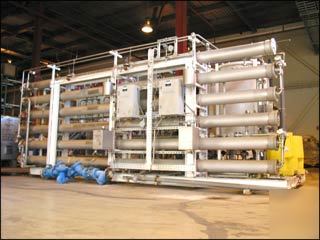

"ONE (1) Used Osmonics dual two pass RO system, model R8-(2)-6M2-6MIF8-30M2PC, first stage as follows: 100 PSI max inlet pressure, 600 PSI permeator and effluent pressure,10 PSI drain pressure, first pass rated 78 GPM feed rate, second pass rated 44 GPM feed rate, second stage as follows:600 PSI permeator pressure, 50 PSI effluent pressure, 10 PSIdrain pressure, first pass rated 78 GPM feed rate, second pass rated 44 GPM feed rate, with Filmtec model BW30-8040 membranes, Osmonics/Tonkaflo pump, model 8520, rated 77.33 GPM @ 438 PSI, skid mounted with 35 gallon poly tank, pump, interconnecting piping, Penfield semi-automatic carbon filter, model CA36072-S, and Penfield semi-automatic depth filter, model DA36072-S, system control panel, approx dimensions: 165" wide x 274" long x 127" high, with controls, serial no. 90A505. http:// /images/26326-01.jpg http:// /images/26326-02.jpg http:// /images/26326-03.jpg http:// /images/26326-04.jpg http:// /images/26326-05.jpg http:// /images/26326-06.jpg (this posting is the responsibility of the poster) |
casey.preston@dfwind.com (Casey Preston) for more information. All emails will be forwarded to the poster's actual email address.
