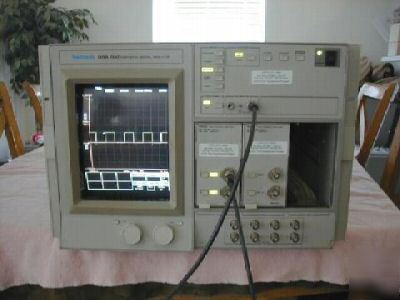

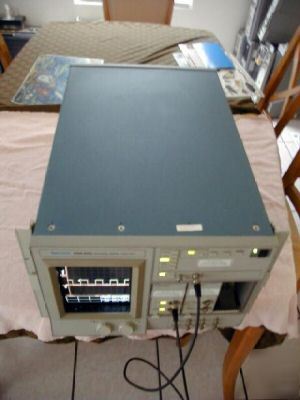

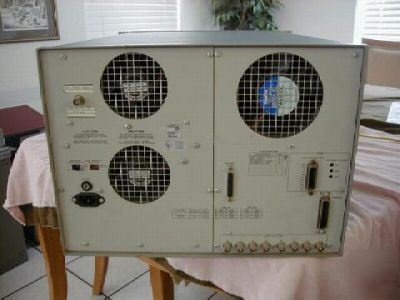

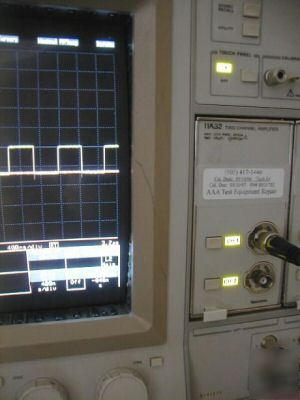

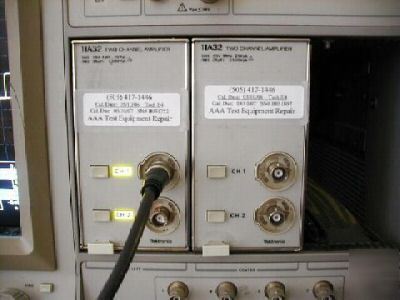

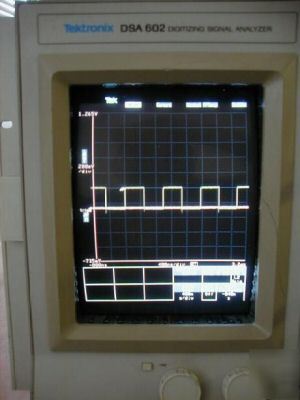

The Tektronix DSA602 is a used 3 Slot 1GHz Digitizing Signal Analyzer Mainframe. The DSA602 Digitizing Signal Analyzer contains powerful internal digital signal processors that can process digitized signals up to 180 times per second. Features include: 2 G Samples/s Sampling Rate 8-Bit Vertical Resolution 1 GHz System Bandwidth 12 channels of acquisition display of 8 waveforms Up to 8 channels of concurrent single-shot capability Time, Event, Level, and Boolean Qualified Triggering. The Tektronix DSA602 Digitizing Signal Analyzer Mainframe Bandwidth: DC to 1GHz (depending on plugins) Time bases: 50ps/div to 100s/div. with Ã, ±0.005% accuracy. Sampling Rate: 2GS/s max. Single shot acquisitions: 4 channel, 500MS/s, 2ns res., 512 to 20K pts; 2 channel, 1GS/s, 1ns res., 512 to 20K points; 1 channel, 2GS/s, 500ps res., 512 to 32K pts. Unit Features: *Color Touch Screen (10 in. diagonal, color, magnetic deflection). *GPIB/IEEE-488 Port *RS-232-C Port *Parallel/LPT Port *1GHz Bandwidth *2GS/s Sampling Rate *Up to 4-Ch/Plug-in; 3-Plug-ins *Dual Window Time Base *50ps/div Time Resolution *Sophisticated Triggering *Variable Persistence Display. This information came from a website. Reasonable offers are well come! REASONABLE ONES! (this posting is the responsibility of the poster) |
robbie_pace@dfwind.com (Robbie Pace) for more information. All emails will be forwarded to the poster's actual email address.
