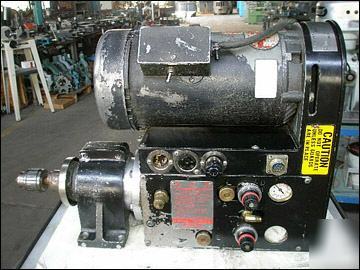

CAPACITIES: No. 60 To 3/8" Mild Steel, Cast Iron, Aluminum And Brass To 1/2". Tapping 0-80 To 1/2" - 13 Mild Steel. STROKE: Drilling: 0" To 3" Fully Adjustable Within ± .001". Tapping 0" To 3" Fully Adjustable. Will Repeat Within 1/2 Turn. SPINDLE SPEEDS: Depends Upon Motor Chosen CHUCK CAPACITY: From No. 60 Drill To 3/8" Diameter. RAPID APPROACH RATE: Up To 600" Per Minute. CONTROLLED FEED RATE: 0 To 60" Per Minute. RETURN RATE: Up To 600" Per Minute. THRUST: From 0 To 450 Lbs. On 100 Psi Line Pressure. Minimum MOTOR: 220/440v, 60 Hz, 3 Phase, 3/4 Hp Ventilated Frame, BEARINGS: Grease Sealed Precision Ball Bearings. MOUNTING: Nose-Mounting Bracket - Available For Plate Or LUBRICATION: Automatic With Filter-Oiler Unit. SEALS: Long Life, Antifriction Neoprene V-Cup. MAXIMUM TAPPING RATE: 10 Cycles Per Minute With Optional 28-200 Tapping Control Panel. A Proud Member of the Machinery Dealers National Association. Norman Machine Tool Ltd. Supplying Quality Machinery and Tooling for Over 55 Years!! Member: Machinery Dealers National Association Hours of Operation: Monday - Thursday 9 a.m. to 5 p.m. - Friday - 9 a.m. to 4 p.m. 1311 South Ponca Street - Baltimore, Maryland 21224 Phone (***)-633-2300 or (***)-394-4399 - Fax (***)-633-7737 (this posting is the responsibility of the poster) |
