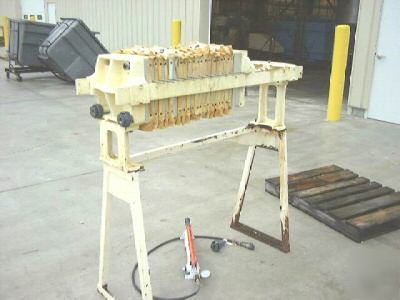

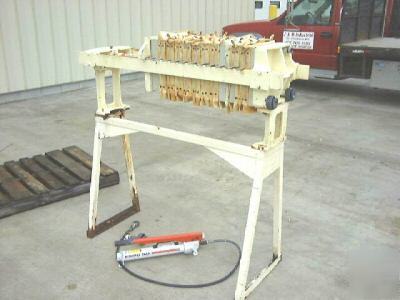

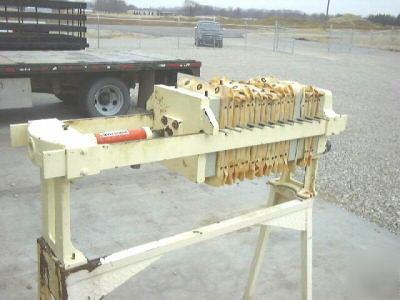

POLYPROPYLENE PLATES. MANUAL HYDRAULIC CLOSURE MECHANISM. FILTER AREA IS 9.7 SQUARE FEET; FILTER CAKE VOLUME IS 0.39 CUBIC FEET; MAX PRESSURE IS 100 PSI; MAX TEMPERATURE IS 90 ° C; 10 CHAMBERS OF 300 MM (12â€) POLYPROPYLENE FILTER PLATES; CORNER FEED, RECESSED PLATES WITH RECESS TO PROVIDE A FILTER CAKE OF 32 MM( 1/¼â€THICK.). THE FILTER PRESS SKELETON IS A RECONDITIONED SHRIVER UNIT CLEANED AND PAINTED WITH CORROSION RESISTANT EPOXY PAINT. UNIT HAS A SINGLE HYDRAULIC CYLINDER CLOSING DEVICE WITH SPRING LOADED DRAWBACK FITTED TO THE PRESS. CYLINDER IS OPERATED BY A MANUAL HYDRAULIC PUMP.
