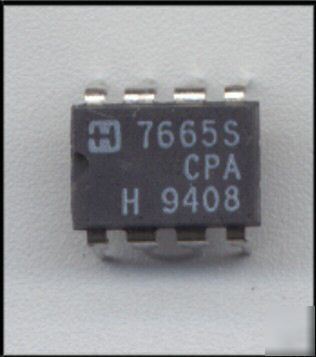

Now over 1,500 items in our Store! CMOS Micropower Over/Under Voltage Detector The ICL7665S Super CMOS Micropower Over/Under Voltage Detector contains two low power, individually programmable Voltage detectors on a single CMOS chip. mA for operation, the device is intended for battery-operated systems and instruments which require high or low voltage warnings, settable trip points, or fault monitoring and correction. The trip points and hysteresis of the two voltage detectors are individually programmed via external resistors. An internal bandgap-type reference provides an accurate threshold voltage while operating from any supply in the 1.6V to 16V range. The ICL7665S, Super Programmable Over/Under Voltage Detector is a direct replacement for the industry standard ICL7665B offering wideroperating voltage and temperature ranges, improved threshold accuracy (ICL7665SA), and temperature coefficient, and guaranteed maximum supply current. All improvements are highlighted in the electrical characteristics section. All critical parameters are guaranteed over the entire commercial and industrial temperature ranges. mA Maximum Quiescent Current Over Temperature * Guaranteed Wider Operating Voltage Range Over Entire Operating Temperature Range * 2% Threshold Accuracy (ICL7665SA) * Dual Comparator with Precision Internal Reference oC Temperature Coefficient of Threshold Voltage * Output Current Sinking Ability . . . . . . . . . . . . Up to 20mA * Individually Programmable Upper and Lower Trip Voltages and Hysteresis Levels for other great component bargains on Microprocessors, Transistors, Capacitors, IC's, Transformers, Diodes, Crystals, and more! And we salute our friends in other countries around the world! (this posting is the responsibility of the poster) |
