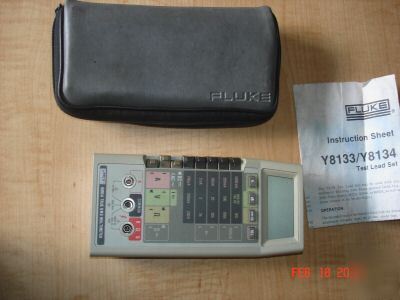

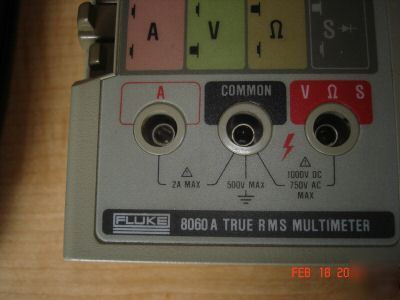

The Fluke 8060A is a 4 1/2 digit (20000 count) meter that measures TRMS AC/DV voltage: range 200mV to 750V/1000V with a 10uV resolution on the 200 mV scale. AC/DV current: range 200uA to 2000mA. Ohms function: range 200 Ohms to Automatic 300 MOhms. Front panel probe jacks have seperate jacks for fused current measurements. It also measure Frequency, DBm or relative DB, Conductance, Diode check AND self diagnostics. It has an onboard microcontroller with 2.2K ROM and 48 RAM! This is truely the top of the line for this series meter. : Great shape and looks, accuracy, very nice soft case manuals CAN BE DOWNLOADED FROM VDC Range and Resolution: 200.00 mV, 2.0000V, 20.000V, 200.00V, 1000.0V VAC (True-RMS, AC Coupled) Range and Resolution: 200.00 mV, 2.0000V, 20.000V, 200.00V, 750.0V ADC Range and Resolution: 200.00 µA, 2.0000 mA, 20.000 mA, 200.00 mA, 2000.0 mA AAC (True-RMS) Range and Resolution: 200.00 µA, 2.0000 mA, 20.000 mA, 200.00 mA, 2000.0 mA Resistance Range and Resolution: 200.00Ohms, 2.0000 kOhms, 20.000 kOhms, 200.00 kOhms, 300.0 MOhms Frequency Range and Resolution: 200.00 Hz, 2.0000 kHz, 20.000 kHz, 200.00 kHz Conductance Range and Resolution: 2000.0 nS (equivalent to 500 kOhms) (this posting is the responsibility of the poster) |
Imogene-kinney@dfwind.com (Imogene Kinney) for more information. All emails will be forwarded to the poster's actual email address.
