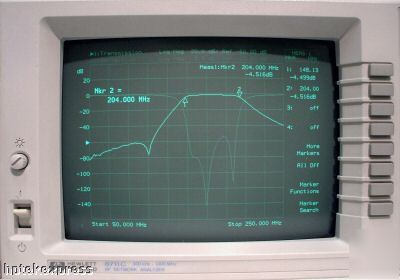

Your Source for Quality Reconditioned Test Equipment. We are the best VALUE in test and measurement! HP 8711C-1C2-1E1 RF Network Analyzer - CALIBRATED 300 kHz to 1300 MHz, Instrument Basic, Output Attenuator Check out our other great test equipment Description: The HP 8711C RF Network Analyzer is an easy-to-use instrument for the measurement of reflection and transmission parameters. It integrates an RF synthesized source, transmission/reflection test set, multi-mode receivers, and a display in one unit. The source features 1 Hz resolution, 50 ms sweep time, and up to +16 dBm output power below 1000 MHz. The three-channel dual-mode receivers have a dynamic range of greater than 100 dB in narrowband measurement mode. Broadband internal detection or external detectors can also be used. Two independent measurement channels display the results of one or two receiver channels in several user-selectable formats. Frequency Range from 300kHz to 1300 MHz with 1 Hz Resolution Two independent measurement channels + 16 dBm source output level Non-harmonic spurious level < -100dBc Flexible connectivity - GPIB, Parallel, and Serial ports External keyboard and VGA monitor support Option 1C2 Instrument Basic Option 1E1 60 dB Attenuator (max level +15 dBm) Condition: Reconditioned and Performance Tested to meet manufacturers specifications. Clean unit inside and out. Physically inspected, hardware re-torqued, connectors treated with a preservative, controls and switches lubricated as appropriate, power supply electrolytics tested, battery replaced. Burned in for 72 hours and then performance tested. All knobs and switches are in good condition. CRT is bright and well focused. Unit will be calibrated and supplied with a certificate of calibration. What do our grades mean? Click Here Need Your Unit Repaired/Reconditioned Please contact us prior to purchasing an item if you have a question. We're glad to assist in any way we can. Calibration is not guaranteed unless the item is advertised as calibrated or you purchase calibration at the time of sale. We maintain a laboratory with high quality equipment in order to verify the performance of the items we sell. We can provide ANSI Z540.1 calibration services on most items sold, if desired. Please contact us for Repair, Reconditioning, or Calibration services. * Item may have some cosmetic imperfections such as scratches, dents, cracks, sticker residue, and discoloration due to normal wear and tear. Every effort is made to make our items as cosmetically acceptable as possible. Abnormal cosmetic conditions are mentioned in the item condition. (this posting is the responsibility of the poster) |
