Lcrz ,esr meter 100,120,1K,10KHZ,0.3%


What do you have for sale (write here): Lcrz ,esr meter 100,120,1K,10KHZ,0.3%
Please send email address to me for all photo .

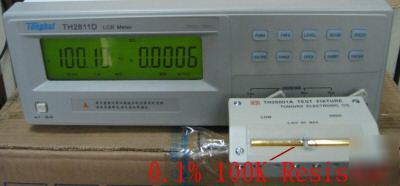

Description : LCRZ Meter or ESR Meter (check ESR for E cap . up to 10HKZ)
Test Frequency: 100HZ,1K,10K +/ - 0.02%
Display: 5 digit for LCR measurement , 5 digit for Q & D measurement

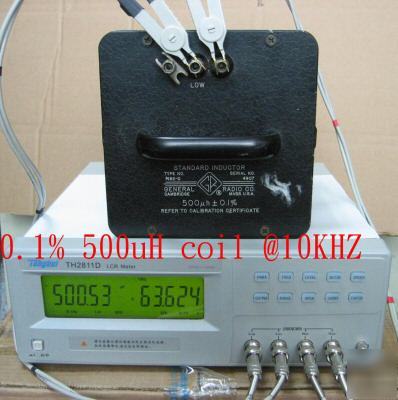

L:1UH to 9999H (100,120HZ),0.1UH to 999.9H (1KHZ),

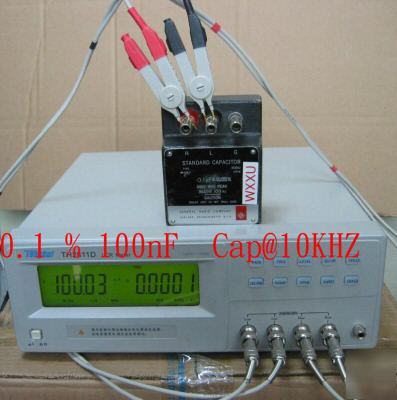

C:1PF to 19999UF (100,120HZ),0.1PF to 1999.9UF (1KHZ),
R or Z : 0.0001 OHM to 99.9M OHM (100,1KHZ,10KHZ )
Quality Factor (Q) : 0.0001 to 9999Dissipation Factor(D) : 0.0001 to 9.999
Test signal level : 0.3Vrms OR 1Vrms @ 1KHZ
AC input :AC 110 or 220V (select by user)
Size & weight: 310(w) x 110(H) X 300(D) mm, 4 Kg net, Packing 5kg
Come with user manual (English )

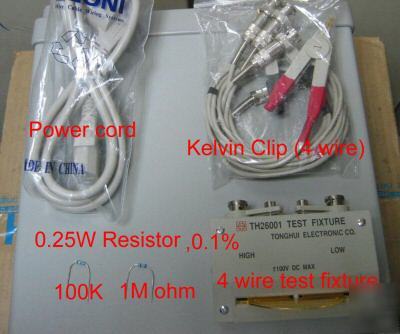

Resistor 100K 0.1% 1 pc,1M 0.1 % 1 pc ,Coil 100uH 1 pc, Cap 100nf 1 pc.
Detail information (data sheet ,more photo) is available. Please ask if you have question.
