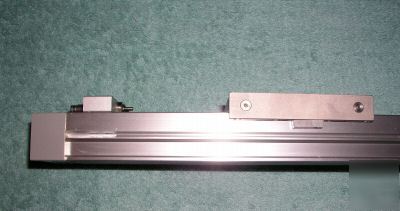

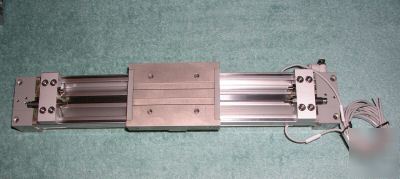

* Mechanically jointed cam follower guide type rodless precision pneumatic slide. * This unit is ideal for off-set loads, has moment resistance and high accuracy. * 20 mm bore rated for 0.8 MPa (115 PSI) * Centralized piping and includes two SMC 6 mm tube QD style flow control elbows. * Includes stroke adjustment blocks on both ends with a low load shock absorber and stop. * Includes two SMC D-A93 reed switch position sensors with indicator light, 2-wire, operate on 12 VDC, 24 VDC or 100 VAC & in-line style. * Carriage measures 100 mm long x 72 mm wide with 46 mm mounting height. This unit has a few tiny cosmetic marks on the body. The sensor rails have also been precisely relieved on each side opposite the end the sensors are on (see pic 2), about 35 mm in length from the end plate, but it is under the adjusting block. The mounting surfaces are unharmed and this unit is clean. * The picture shown is the actual item(s) being sold and everything that is included is shown or listed in the ad. * Unless noted in the ad, I securely package all items and double box any item in OEM packaging. (this posting is the responsibility of the poster) |
jordan-caldwell@dfwind.com (Jordan Caldwell) for more information. All emails will be forwarded to the poster's actual email address.
