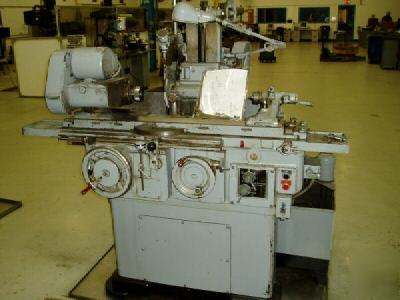

#13 BROWN & SHARPE UNIVERSAL TOOL & CUTTER GRINDER New 1974, Serial No 525-13-2242, Model 13, Cabinet Full Of Tooling: Collets, 6-Jaw Chuck, Magnetic Chuck, Face Plate, ETC. Work Diameter Between Centers.......... 8" Work Length Between Centers............ 15" Distance Between Centers............... 24" Table Swivels, Degrees................. 90-DEGREES Table Longitudinal Travel.............. 22" Work Center to Spindle Center, Maximum 12-1/2" Work Center to Spindle Center, Minimum 2-1/4" Wheel Spindle to Table Top, Maximum.... 12-1/8" Wheel Spindle to Table Top, Minimum.... 3-3/4" Workhead Angular Setting (+/-)......... 100-DEGREES Wheelhead Transverse Travel............ 10-1/4" Wheelhead Vertical Slide Travel........ 8-3/8" Wheelhead Swivel, Degrees.............. 110-DEGREES (3) Grinding Spindle Speeds, Range..... 2500 to 5150 RPM (4) Workhead Spindle Speeds, Range..... 128 to 540 RPM (6) Longitudinal Table Speeds, Range... 7.7 to 100 IPM Workhead Motor, Horsepower............. 1/6 HP Spindle Motor, Horsepower/RPM.......... 1 HP/1735 RPM Electrical System...................... 220-440/3/60 Weight, Approximately.................. 2900 LBS PRICE: F.O.B. OUR WAREHOUSE........... $6,950.00 Note: RUNNING 220 VOLTS. GRINDER RUNS O.K. THERE IS A PROBLEM WITH HEAD ELAVATION. All machines/equipment subject to prior sale. (this posting is the responsibility of the poster) |
p_boyle@dfwind.com (Pamela Boyle) for more information. All emails will be forwarded to the poster's actual email address.
