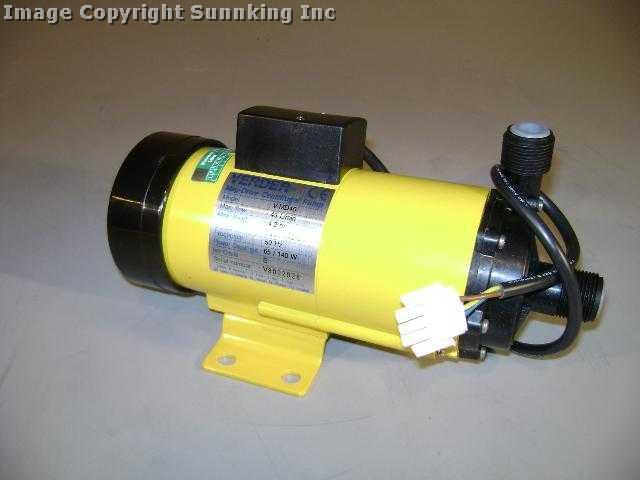

Verder Mag-Drive Centrifugal Pump Model V-MD40 Max flow-43 L/min, Max. Head-4.2 m, Voltage-220/240 V, POwer(output/input) 65/140 W, ISO class E. A very compact, mag drive centrifugal pump. Dependent on the application these pump series can be supplied with either closed or open impeller. The electric motors are completely integrated and are fed with a power supply of 230/240 V, 50 Hz. All type can be supplied with threaded or hose connection. The major advantage for using the V-MD pumps is total product containment; no unexpected leakage. Even for flows up to 100 liters/minute the models are still compact due to the close coupled electric motors. The process connections are standard hose design, but the larger models in particular can also be supplied with threaded connections. Motor specifications are standard single phase (100-110 V and 220-240 V), 50 to 60 Hz for use worldwide. For optimum efficiency and lower heat input the smaller models can be operated with DC drives. The maximum voltage is 24 V, this results in an operating speed of 4.000 rpm. This is much higher than the 2.500 rpm at 50 cycles with AC drives. Excellent for OEM requirements in flow and characteristics The small pump with gigantic possibilities * Hours of Operation: We are open Monday through Friday, 8:00am to 4:30pm EST. * Parts Removal: The item(s) shown above will not be dismantled or separated. * NY Residents: Responsible for (8.00%) for NY Sales Tax. ALL ITEMS ARE GUARANTEED TO BE Meaning: if you receive an item and it is not AS DESCRIBED: you may contact Sunnking within 3 Days of receipt of item to discuss Return / Refund options. Click Here to utilize our RMA form. You must complete the online return form to recieve a RMA number and instructions for return. For additional information on Sunnking's Warranty / Return policy Click Here (this posting is the responsibility of the poster) |
