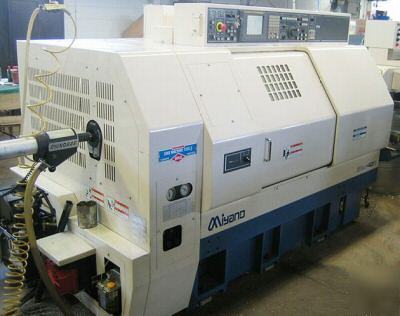

MIYANO BNJ-42S DUAL TURRET CNC TURNING CENTER WITH SUB-SPINDLE & LIVE TOOLING Power chuck: L/R Spindle 5"/4" Oil-hydraulic Max. bar capacity: L Spindle 1-5/8" Max. bar capacity: R Spindle 1-5/8" Max. turning length (limited by part catcher) 3.94" Turret tool stations: L Turret 12 St. Turret tool stations: R Turret for R spindle only 6 Max. No. of revolving tools: L turret 6 L Turret slide travel: L Turret (X1-Axis) 5.59" L Turret slide travel: L Turret (Z1-Axis) 9.84" R Spindle slide travel: R Spindle (X2-Axis) 2.76" R Spindle slide travel: R Spindle (Z2-Axis) 20.28" Tool shank size: L & R turret Sq. 0.79" Tool hole diameter: L & R turret 0.98" Spindle speed range: L Spindle 67 - 5,000 r/min. Spindle speed range: R Spindle 67 - 5,000 r/min. Spindle motor: L Spindle 14.75 HP / 10.05 HP Spindle motor: R Spindle 7.37 HP / 4.96 HP Approx. machine weight 9,350 lbs. B&S 22 Collet chuck main spindle B&S 22 Collet chuck sub-spindle Rhino bar 12' Single tube hyd. barfeed (this posting is the responsibility of the poster) |
e.boone@dfwind.com (Eunice Boone) for more information. All emails will be forwarded to the poster's actual email address.
