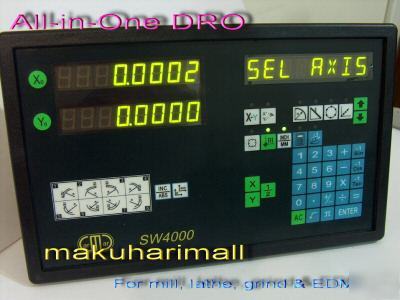

Model SW4000-2, 2-Axis Digital Readout with RS232 Port DRO + Two Pieces of Linear Glass Scales included. Connect to your PC with RS232. Cable included 3-in-1 multi-functions DRO for lathe, milling and grinding machines. Linear scale travel length is 31.5" and 14" (800 & 350mm) for just ... Can this be use for your machine? Not sure? Please email to me and I will be happy to answer all your questions. (There is a similar model SW4000-E with functions for EDM) ½ to locate work piece center. Self-diagnostic function for calculation error. Set direction of linear scale. RI detection: set and recall datum for machining. Resolution selection: 0.001 , 0.005 , 0.010 mm Can be used with rotary encoder. 1 ~ 0.0001 deg., selectable resolution. Milling Function: Bolt Circle machining, R-angle machining, Divide holes on an oblique line, Machining on an oblique line. Lathe Function: Radius/Diameter, X + Y (2-axis DRO), X + Y/Z (3-axis DRO) Grinding Function: Filtering ( make it easier to read the display). Dimension: 295mm x 185mm x 45mm. Linear scale signals : TTL square wave. High accuracy optical glass scale. Accuracy: ±0.005 mm (at 20 degrees). Thickness x Height: 21 x 39 mm /61 mm. Effective measuring length, L = 50 to 800 mm. Maximum measuring length = L + 30mm. Overall length, OAL = Measuring Length + 149 mm. Distance between mounting holes= Measuring Length + 132 mm. Output Signal: TTL Square wave. Standard 11.5 ft (3.5m) armored cable. 1 set of SW4000-2 digital readout with 2 pieces of linear scales. Linear scale size: 31.5" & 14" travel. Display mounting arm and plastic dust cover. Aluminum covers for linear scale. * Delivery takes about 11 to 17 days depending on your location/country. * Tracking number will be email to you. * Return accepted within 30 days for refund/exchange. Easy Free Borders from TagBot Borders (this posting is the responsibility of the poster) |
