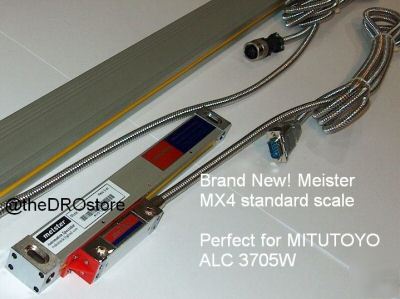

Meister MX4 Double Sealed Linear Glass Scales, 5um Resolution Just Plug-and-Use right away with Mitutoyo 3705W, 7705W, PM32L, PM12L and ARC-5701W. One (1) Piece of Meister MX4 Linear scales with travel stroke 36" (900 mm). Overall length, OAL = Travel + 142 mm. If you need other travel length, please let me know so that I can do a listing specially for you. And 12 month warranty from factory. Full Refund if the scale does not work as promised! We have scales suitable for Anilam, Acu-Rite, Easson, Fagor, Meister, Knuth, Sargon and SINO digital readout. Not sure? Send me your questions right away. * Precision etched glass type. * Both the MX4 and MX6 Series are designed with double sealing to further improve the protection of the glass scale from coolant and chips. * Slide carrier system: Vertical five bearings supporting system. * Grating (Pitch): 20 µm (0.02 mm) * Accuracy: 0.005 µm or 0.0002" * Operating Temperature: 0 ~ 5 °C * Output signal: TTL, square * Every scale has ABS reference marks. * Standard 9.8 ft armoured cable. Scales can be supplied with 6 Pin round, DB-9, DB-15 or D-25 connectors. Please email to us your requirement for your machine. Please email your city & post code to get a quotation. ▲ Meister Scale: Direct replacement for Mitutoyo KA Counter. * Factory make linear scales to these travel length for MX4 Standard series which is suitable for most application: Metric: 50, 100, 150, 200, 220, 250, 270, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950 & 1000 mm length. Inches: 4.5, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, 36, 37.4 and 40 inches. * The next series is MX6 "Heavy" frame which is make to these sizes: 1050, 1100, 1200, 1300, 1500, 1600, 1700, 1800 and 2000 mm length. From 41.3" to 80" length. * And the MX3 "Small" profile series is suitable where space is a constraint (such as the compound slide of the lathe or small machines like the mill-drill). * Factory will take 2 ~ 3 days to process your order. * Transit time is about 9 ~ 15 days; subjected to delays in transit. * Tracking number will be provided. * Exchange /Full Refund if scale does not work with the DRO as per item description. (this posting is the responsibility of the poster) |
bernadetterodriguez@dfwind.com (Bernadette Rodriguez) for more information. All emails will be forwarded to the poster's actual email address.
