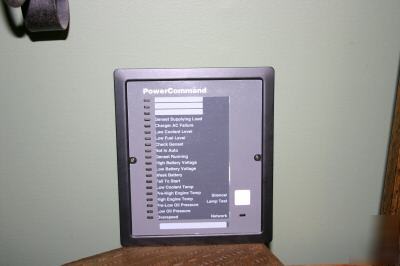

Cummins PowerCommand Universal Annunciator 300-5929-2 The Universal Annunciator Module provides visual and audible indication of up to 20 separate alarm or status conditions, based on discrete (relay) inputs or network inputs. Each LED can be controlled by either a discrete wire input or by a signal on the PCCNet network sent from an external device, such as a PCC1301 or PCC2100 (version 2.4 or later) control. In addition to the LEDs, the annunciator can control four custom relays based on signals received over the PCCnet. When one of the annunciator’s discrete inputs is activated, the annunciator will broadcast that information over the network. By taking advantage of the network, discrete inputs and custom relays, the annunciator can be used as expanded I/O for a genset controller. Easily installed in a location to give immediate notification of an alarm or warning status. Designed to give operating/monitoring personnel quick glance status information. The module directly senses battery voltage to provide green/yellow/red alarm and status information for that parameter. Genset controller complies with NFPA level two and three requirements when used with the display but without the annunciator panel. When used with the annunciator it meets NFPA level one requirements. (Emergency and Standby Power Systems). The annunciator module can also be used for monitoring of transfer switch or other equipment status. • Visual and audible warnings of up to 20 separate alarm or status conditions. • LEDs can be controlled either via PCCnet or discrete input. • Status of discrete inputs are broadcast on network. • Four custom relays can be controlled over the PCCnet network. • Configurable LED color (red, yellow, or green) and selectable horn operation allows maximum flexibility. • Standard NFPA 110 label, field configurable for other alarm status and conditions. • Each audible alarm is annunciated, regardless of the number of existing alarm conditions displayed. • Sealed membrane panel design provides environmental protection for internal components and is easy to clean. • Configurable for negative (ground) input or positive input. • Integral DC Voltage Sensing. • Flush or surface mount provisions. • UL Listed and labeled; CSA certified; CE Marked. Positive: Input impedance is 1.82 kOhms to ground; maximum input voltage = 31 VDC Negative: Input impedance is 1.82 kOhms to Bat+: Inputs are at Bat+ level when open Sink/Source Current Threshold for Detection: 150 Typical Conductor Size: 16 ga for 1000 ft Max conductor size for terminal: 12 ga 0.2 A @ 125 VAC and 1 A @ 30 VDC 18 ga twisted pair wire or Cat 5 cable. Total network length can not exceed 4000 feet. Up to 20 nodes can be connected to the network. (Note: Any communications wire connected to the genset should be stranded cable.) Functional Range: Audible and visual conditions operational from 6.5 to 31 VDC. Low Voltage Setting: 12.0 VDC for 12 volt nominal systems; 24.0 for 24 volt nominal systems. High Voltage Setting: 16.0 volts for 12 volt nominal systems; 32.0 volts for 24 volt nominal systems. Weight (with enclosure): 3.0 lbs (1.4 kg) - 20° C to +70° C (-4° F to +158° F) 10% to 95% RH (non-condensing) Can be configured for current NFPA 110 standard or as a replacement for Legacy (pre-2001) NFPA 110 Annunciator (300-4510 or 300 4511) 300-5929-02 Panel with Enclosure See your distributor for more information Back feed to a utility system can cause electrocution and/or property damage. Do not connect generator sets to any building electrical system except through an approved device or after building main switch is open. For Professional Use Only. Must be installed by a qualified service technician. Improper installation presents hazards of electrical shock and improper operation, resulting in severe personal injury and/or property damage. If you have any questions, please ask, I want your shopping experience to be a pleasant one. All items smoke free. All items are New unless stated otherwise. (this posting is the responsibility of the poster) |
