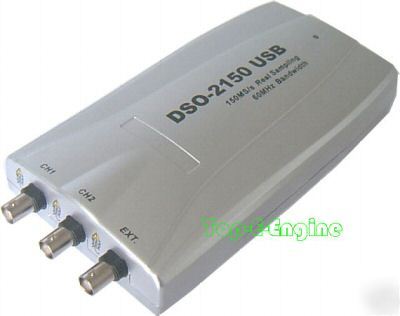

We are an official registered company and can give you the best service. please View my other items on my store USB interface 150 Mhz dual trace digital storage oscilloscope and Spectral analysis Device DSO 2150 is a USB interface 150 Mhz dual trace digital storage virtual oscilloscope, it need to be connected with PC to use and it can view signal waveform & spectrum. DSO 2150 be saved to disk for future use. This is a wonderful tool that you can use for measure * Operating System: Windows 98/ME/2000/XP/VISTA * Graphic Card: Microsoft DirectX supported , Screen resolution: DSO-2150 USB is a portable PC-based Digital Oscilloscope. DSO-2150 USB has the following features: 60MHz analog bandwidth, 150MHz DSO-2150 USB uses USB that supports plug’n play. Best performance for your dollar DSO-2150 USB has many features that is comparable to the high speed stand-alone DSOs. But it costs a fraction of the price. DSO-2150 USB does not need an external power source, because it is bus-powered from USB.DSO-2150 USB is a Windows software that controls DSO-2150 USB is easy to use. It is intuitive and easy to understand. You can change DSO-2150 USB screen size as you need. Various data format processing DSO-2150 USB can save waveform in the following formats: text file, jpg/bmp graphic file, MS excel/word file. DSO-2150 USB has fast screen update rate. DSO-2150 USB has 23 measurement functions. DSO-2150 USB uses digital persistence and histogram method so that the display resembles an analog oscilloscope screen. 10mV ~ 5V/div @ x1 probe(10mV, 20mV, 50mV, 100mV, 200mV, 500mV, 1V, 2V, 5V/div1,2,5 sequence) 35Vpk (DC + peak AC < 10 kHz, without external attenuation) 4ns/div ~ 1h/div(4ns, 10ns, 20ns, 40ns, 100ns, 200ns, 400ns, 1us, 2us, 4us, 10us, 20us, 40us, 100us, 200us, 400us, 1ms, 2ms, 4ms, 10ms, 20ms, 40ms, 100ms, 200ms, 400ms, 1s,2s, 4s, 10s,20s,40s,10m,20m,40m,1h /div 1-2-4 sequence) Realtime sampling: 4ns /div ~ 400ms/div. Edge trigger: Rising edge, falling edge. Vp-p, Vmax, Vmin, Vmean, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle RMS, period, frequency, positive pulse width, negative pulse width, rise time (10%~90%), fall time (10%~90%), positive duty cycle, negative duty cycle Addition, Subtraction, Multiplication, Division Rectangular, Hanning, Hamming, Blackman Window No external power source required. 4. An Operating Manual in Engliah. Link DSO 2150 oscilloscope with PC USB Interface Canada, Eu, UK, Ger, Asia, Australia and Newzealand, USA Please contact to us for Detail * We appreciate your business and offer an instant 7 days return policy.(7 days after receive the item). * The returned item has to be in its original condition. · Our response time : within 8 hours (this posting is the responsibility of the poster) |
