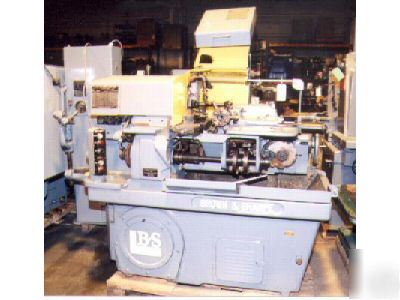

Brown & Sharpe No. 2 Square Base Screw Machine Number of spindle speeds(two speed combinations) 240 Spindle speeds-r.p.m. -Fastest 5050 Spindle speeds- r.p.m.(high speed range) -Fastest 5050 Horsepower required at maximum capacity 5 Thirteen or fourteen low speeds available for each high speed in approximate ratios 1.6:1 to 15:1 Driveshaft speed r.p.m. 240 or 120 Regular turning length with 240 r.p.m. driveshaft speed 2½ in. Long turning length with 120 r.p.m. driveshaft speed 3 ½ in. Maximum length of feed stroke at driveshaft speed -240 r.p.m. 2 ¾ in. Number of tool holes in the regular turret 6 Diameter of tool holes in turret 1 in. Diameter of turret - 6 hole 5 in. Maximum distance between turret and chuck - 6 hole 7 ½ in. Maximum diameter tool turret will swing 3 in. Greatest distance tools can project beyond turret Tools of maximum diameter - 6 hole 3 7/8 in. Movement of cross slide 1 ¾ in This machine has been cleaned, cycled and painted. You may inspect this machine under power at our facility. For more information read our Frequently Asked Questions page. (this posting is the responsibility of the poster) |
