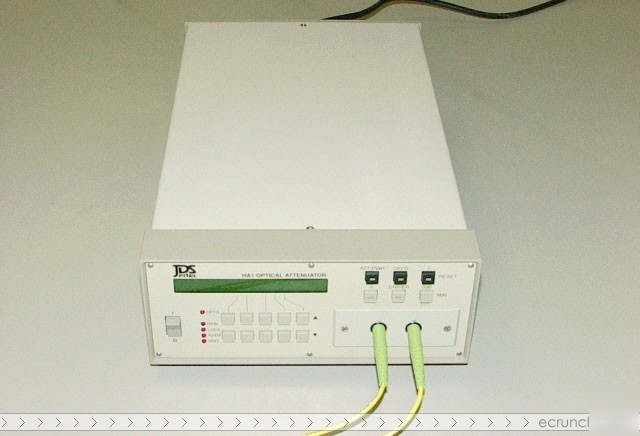

Information - Questions? Call (***)-253-6114 Ask for Chip or Trip HA attenuators are ideal for use in such demanding applications as multichannel AM systems and high bit-rate digital pulse code modulation (PCM) systems. Discrete internal optical reflections are minimized to better than 60 dB, and cavity effects are virtually eliminated. All HA attenuators are offered with high return loss and low spectral ripple for CATV AM systems. The HA series attenuators are high-resolution, extended-range, programmable attenuators ideal for testing power meters and for general test and laboratory work. The HA attenuators have a nominal resolution of 0.01 dB (0.001 dB for the HA1 series) and an extended attenuation range of 100 dB. The standard operating wavelength is 1200-1700 nm. The HA1 attenuator is a single-mode, ultra-high resolution, and programmable attenuator ideal for bit error rate testing and general laboratory work. The inherently linear design of these attenuators, combined with built-in calibration and offset functions, allows the user to match the display to an optical power meter over a wide power range. This feature is useful in tests requiring control of the absolute optical power source for the test device. The built-in beam blocking switch provides fast access from any attenuation setting to infinite attenuation ( > 90 dB). This unit has the following applications: * Precise optical power control * Power meter linearity calibration * Loss simulation in fiberoptic links EDFA * output power characterization This unit has the following specifications: * Operating Wavelength: 1200 to 1700 nm * Repeatability: +/- 0.01 dB * Change Rate: < 2.5 s; 0 to 100 dB * Insertion Loss Single Mode: < 1.5 dB * Maximum Optical Input Power: 200 mW This item is in excellent condition, working perfectly, and comes with a 14 Day Guarantee Against DOA. Our 14 Day Guarantee Against DOA (Dead On Arrival) does not guarantee compatibility. Cashier's Check, Company Check, Money Order, and Personal Check Bank Wire - Contact for Information Bank Wire - Contact for Information (this posting is the responsibility of the poster) |
