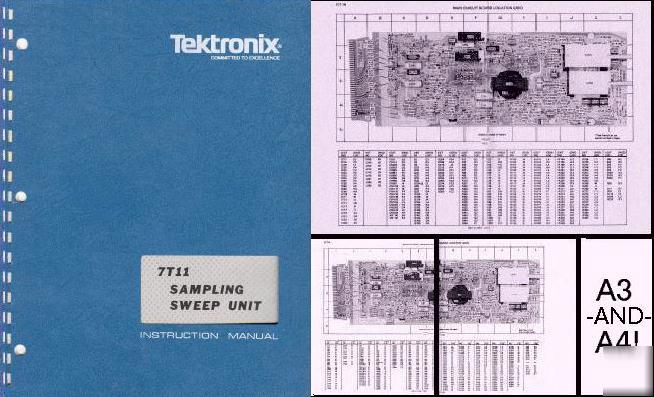

Tektronix 7T11 Service and Operating Manual in PDF on CD Why settle for just one resolution? You get them both! For High Res page samples from this specific manual, click HERE. (No need to "email for samples," so no need to worry about getting sold to a SPAM list!) (Please read FAQ or "About Me" Page) As "bonus" material, includes the Tektronix Semiconductor Parts Catalog, plus an interesting and informative Articles PDF. Also, because so often TM500 series power modules/plugins are used in conjunction with the 7000 series instruments, this CD also includes a fully bookmarked, hyperlinked and text-searchable scan of the entire "TM500 Rear Interface Data Book", a "TM500 Modular Test & Measurement Instruments" 44 Page Brochure and the Publication "Suggested Power Supply Circuits for The TM500 Blank Plug-In Kit" at no additional charge! This manual covers operations, maintenance and servicing of the Tektronix 7T11 Oscilloscope Plugin. It is scanned from the original manufacturer's manual. The scans came out well, and all information available in the original manual is available here. Two PDFs of the manual are provided, in two resolutions. One is: Text with Drawings at 600dpi black and white or grayscale (content-dependent) Schematics at 600dpi black and white or grayscale (content-dependent) Text with photos at 600dpi (minimum) grayscale with contrast adjusted Schematics, overlays with color notes (if any) at 600dpi 256 colors (minimum) The other PDF is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed. Also, we include a "foldouts.pdf" with foldout pages from the manual scanned 17x11". Please note that the foldout pages are ALSO included as A4 scans (sectioned into 8.5x11" pages, in other words) in the main manual. Instead of deciding which size is "better" and providing only that, Jill and I give you both options so you can do things the way that's best for you. We also send you both both resolutions on the CD. You'll receive the large files, plus the smaller, faster text-searchable versions. That way, you can navigate, search and etceteras with the fast file and only use the large files when you want to print. There's no need to clutter up your drives with PDFs hundreds of megabytes in size, nor any need to spend time writing them to and from the hard drive if you aren't the sort who likes to waste space. Yet those extra-large PDFs are still provided for when you need exceptional print quality. All original manual pages are supplied in both resolutions, with no pages added or subtracted. (this posting is the responsibility of the poster) |
