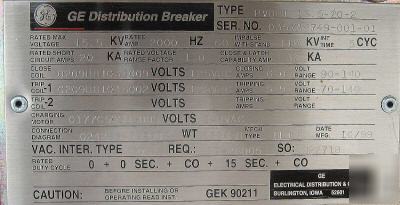

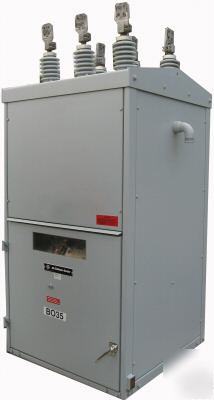

This GE DISTRIBUTION BREAKER has the folowing attributes listed on its label as seen i picture. Rated max voltage = 15.5 KV Rated Amp 2000 HZ 60 Impulse Withstand 110 KV int time 5 CYC Rated Short Circuit Amps 20 KA rated voltage range factor 1.0 close & latch capability amp 32 KA Close coil 0209b8103g009 VOLTS 125VDC closing amps 6.0 Volt Range 90-140 Trip coil-1 0209b8104g002 VOLTS 125VDC tripping amps 5.9 volt range 70-140 Charging Motor 0177c5050G005 Volts 240VAC Connection Diagram 0242b8403p002 WT 2300LB Mech Type ML18 Date MFG 10/99 VAC. INTER.TYPE 50D1 REQ.: 433-26005 SO 922718 RATED DUTY CYCLE 0 + SEC + CO 15 SEC + CO Freight will be aranged apon purchase. Please contact us if you have any questions. (this posting is the responsibility of the poster) |
b.castillo@dfwind.com (Beulah Castillo) for more information. All emails will be forwarded to the poster's actual email address.
