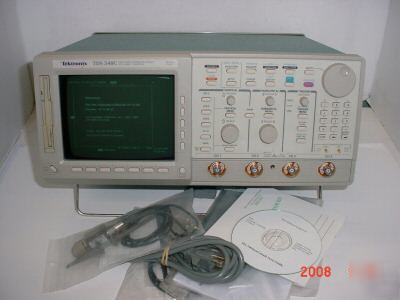

Tektronix TDS540C 4 Ch. Digital Oscilloscope with options 13, 1F, 2C and 2M The Tektronix TDS 540C combines the high performance and ease of use of the familiar TDS oscilloscopes to provide the most comprehensive debug and measurement solutions for engineers who need to connect to, capture, and characterize their complex, high-speed electronic designs.. * Be Confident You're Seeing Actual Signals with 500 MHz Bandwidth and ±1% Accuracy * InstaVu Acquisition Lets You Find Elusive Infrequent Glitches Instantly with Highest Waveform Capture Rate Available on a DSO. * Connect and Acquire Four Channels Simultaneously with Full 1 mV to 10 V/div Sensitivity * Speed up Your Circuit Analysis with 29 Built in Automatic Measurements, Waveform Histograms and Measurement Statistics * Easily Trigger on Error-causing Conditions with a Full Complement of Advanced Trigger Modes * Capture Transient Events to the Full Scope Bandwidth with its 2 GS/s max Sample Rate This unit has the following options: * Option 13: RS-232C and Centronics Hardcopy Interfaces * Option 1F: 3.5 inch 1.44 MB Floppy Drive * Option 2C: Communication Signal Analyzer * Option 2M: Add 2M/Ch. Memory Length This unit calbrated by Telogy thru 10/17/08, it also included folowing accessories: * Four Tek P6139A Passive Probes * CD Manuals (User's Guide, Reference Manual, Technical Ref. Manual) * Our hours of operation are M-F, 10-5PM Pacific Standard Time. Phone: (***) 257-2445 Fax: (***) 257-6310 (this posting is the responsibility of the poster) |
